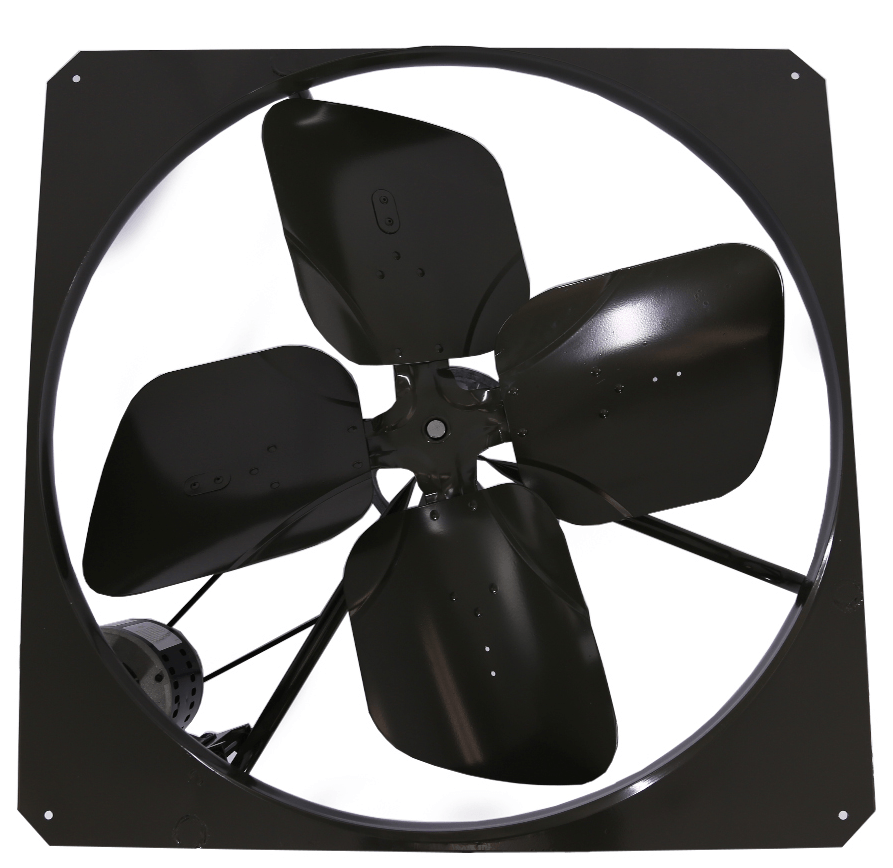

RV Panel Supply Fan Totally Enclosed 115/230 Volt 30 inch 9560 CFM Belt Drive RV3013T-U
Triangle Engineering
Item #: RV3013T-U
Blade Diameter
30.0"
CFM
9560
Phase
1 Phase
Voltage
115 / 230 AC
Specs for RV Panel Supply Fan Totally Enclosed 115/230 Volt 30 inch 9560 CFM Belt Drive RV3013T-U
Blade Diameter: 30.0"
CFM: 9560
Drive Type: Belt
Fan Type: Supply Fan
Hertz: 60
Horsepower: 1/2
Made in the USA: Yes
Motor Type: ODP
Phase: 1 Phase
Speed(s): 1 Speed
Voltage: 115 / 230 AC
Warehouse: Arkansas
Warranty: 1 Year
Triangle’s RV Series Belt Drive Industrial Wall Supply Fans are designed with long lasting performance in mind and are well suited for supplying factories, gymnasiums, and warehouses. Each of our RV Series Industrial Wall Supply Fans come standard with automatic belt tensioning to reduce maintenance and to extend motor and belt life
FEATURES
Belt drive
Rolled venturi for improved airflow
Durable polyester powder coated finish
High quality, heavy duty components
Automatic belt tensioner
