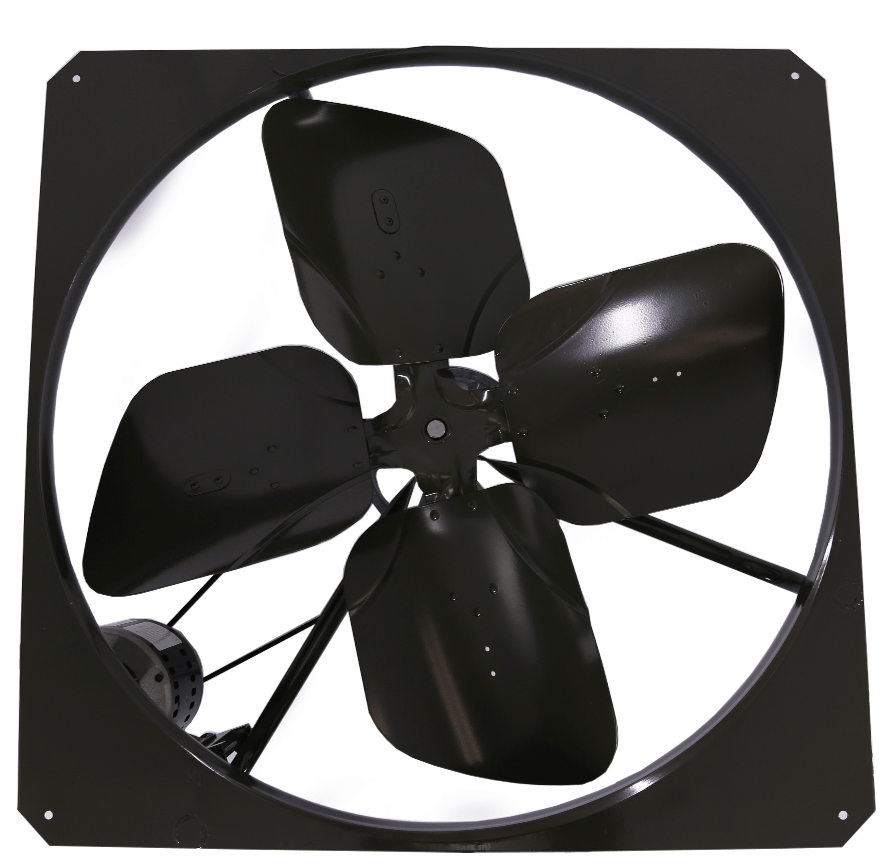

RV Panel Supply Fan 2 Speed 30 inch 6300 CFM Belt Drive RV3022
Triangle Engineering
Item #: RV3022
Blade Diameter
30.0"
CFM
6300
Phase
1 Phase
Voltage
115 AC
Specs for RV Panel Supply Fan 2 Speed 30 inch 6300 CFM Belt Drive RV3022
Amp: 6.5
Blade Diameter: 30.0"
CFM: 6300
Drive Type: Belt
Hertz: 60
Horsepower: 1/3
Made in the USA: Yes
Motor Type: ODP
Phase: 1 Phase
RPM: 525
Speed(s): 2 Speed
Voltage: 115 AC
Warehouse: Arkansas
Warranty: 1 Year
Triangle’s RV Series Belt Drive Industrial Wall Supply Fans are designed with long lasting performance in mind and are well suited for supplying factories, gymnasiums, and warehouses. Each of our RV Series Industrial Wall Supply Fans come standard with automatic belt tensioning to reduce maintenance and to extend motor and belt life
FEATURES
Belt drive
Rolled venturi for improved airflow
Durable polyester powder coated finish
High quality, heavy duty components
Automatic belt tensioner
