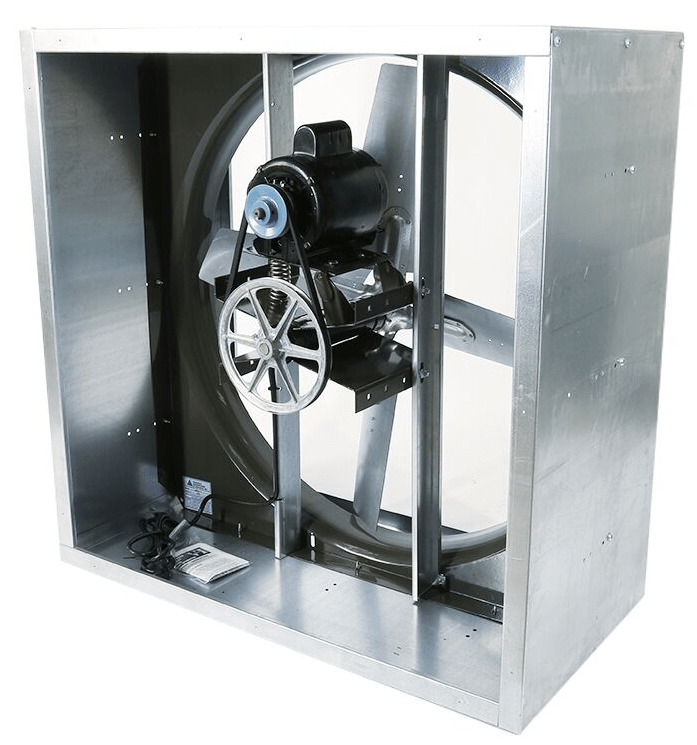

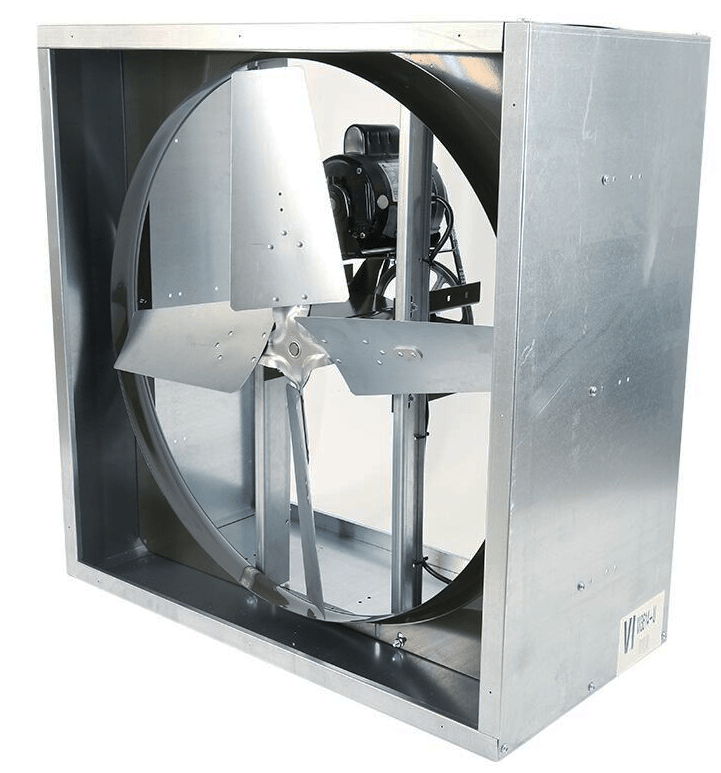

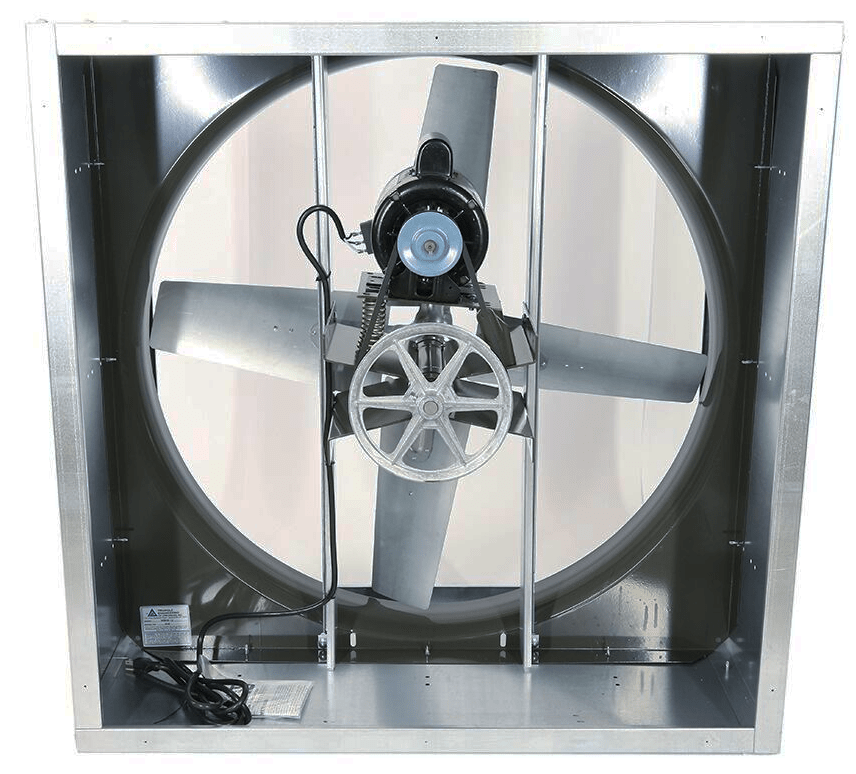

RVI Cabinet Supply Fan Totally Enclosed 36 inch 10800 CFM 230/460 Volt Belt Drive RVI3613T-X

Triangle’s RVI Series Belt Drive Heavy Duty Industrial Supply Fans are designed to meet the supply airflow needs of factories, warehouses, gymnasiums, greenhouses, etc. The RVI Series Heavy Duty Industrial belt drive supply fans come standard with a polyester powder coated venturi to improve airflow and protect against corrosion as well as a heavy-gauge galvanized housing for corrosion resistance.

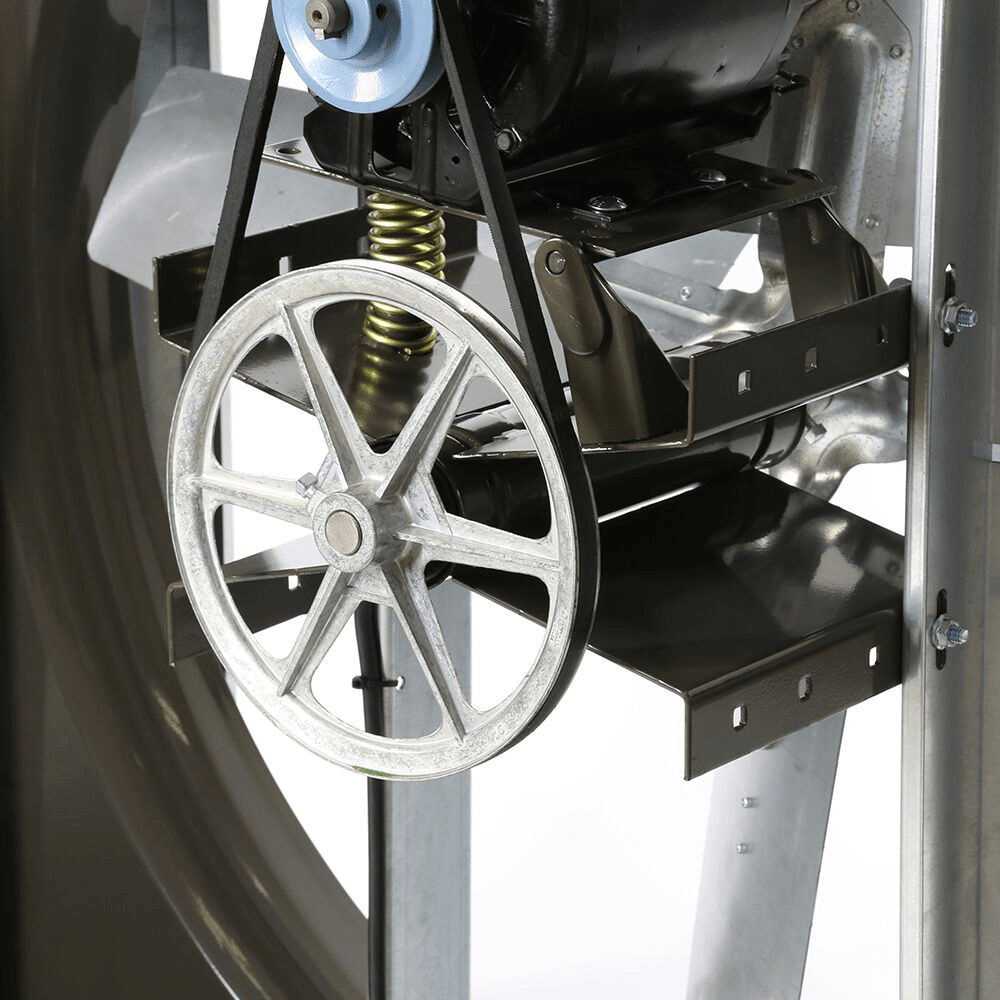

All standard RVI models up to 1.5 HP come equipped with Triangle’s exclusive X-Wing Belt Tensioner which reduces maintenance and extends belt and motor life.

FEATURES
Belt drive
Bronze powder coated rolled inlet venturi for efficient airflow
Rugged heavy gauge galvanized housing

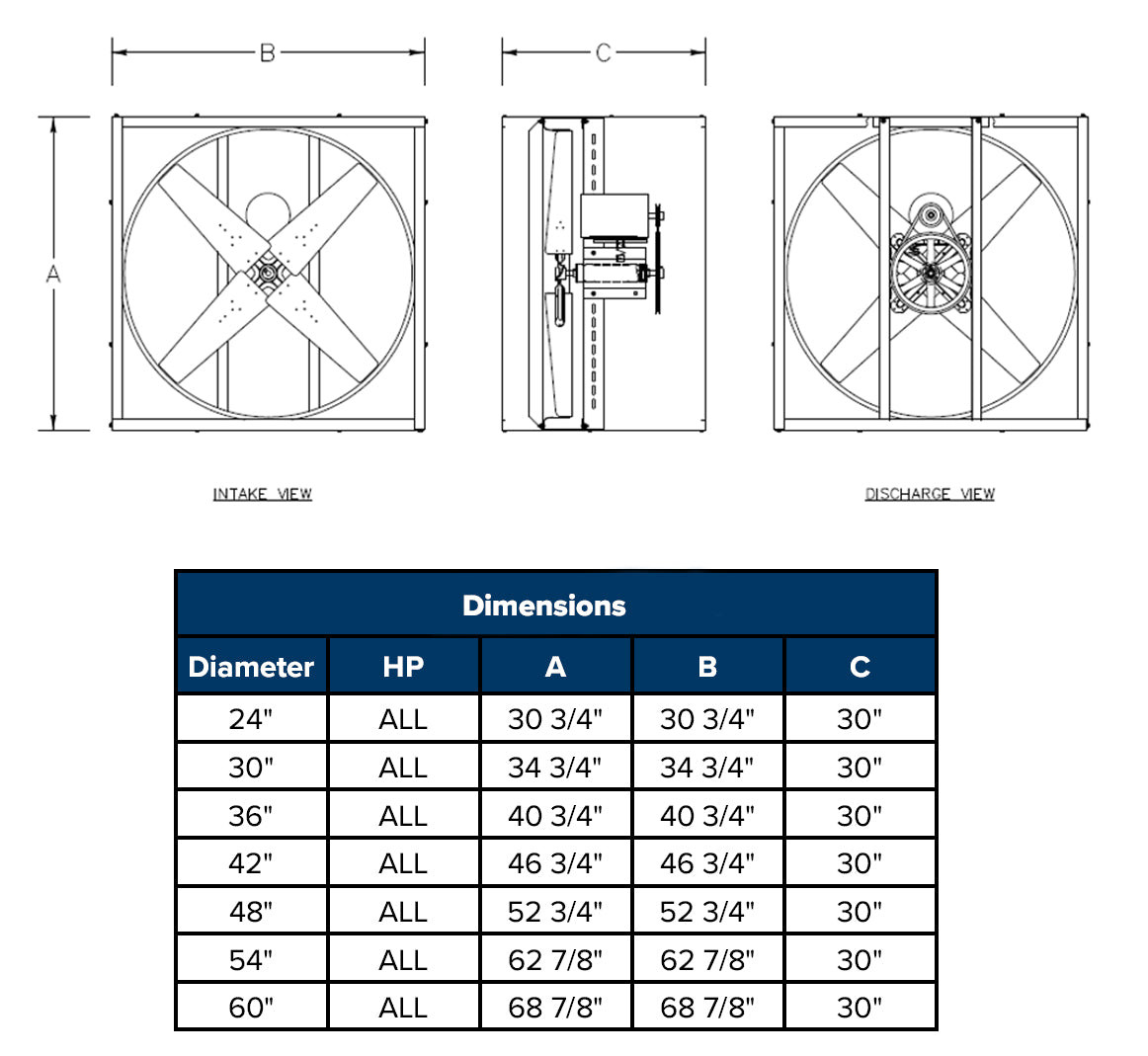

Available in sizes from 24" to 60" blade diameter
Available with ODP and TE motors
