RVI Cabinet Supply Fan 36 inch 12100 CFM 230/460 Volt Belt Drive 3 Phase RVI3615-X

Specs Details Downloads

Specs for RVI Cabinet Supply Fan 36 inch 12100 CFM 230/460 Volt Belt Drive 3 Phase RVI3615-X

Blade Diameter: 36.0" Blade Material: Steel CFM: 12100 Drive Type: Belt Horsepower: 1 Made in the USA: Yes Phase: 3 Phase RPM: 555 Speed(s): 1 Speed Voltage: 230 / 460 AC Warehouse: Arkansas Warranty: 1 Year

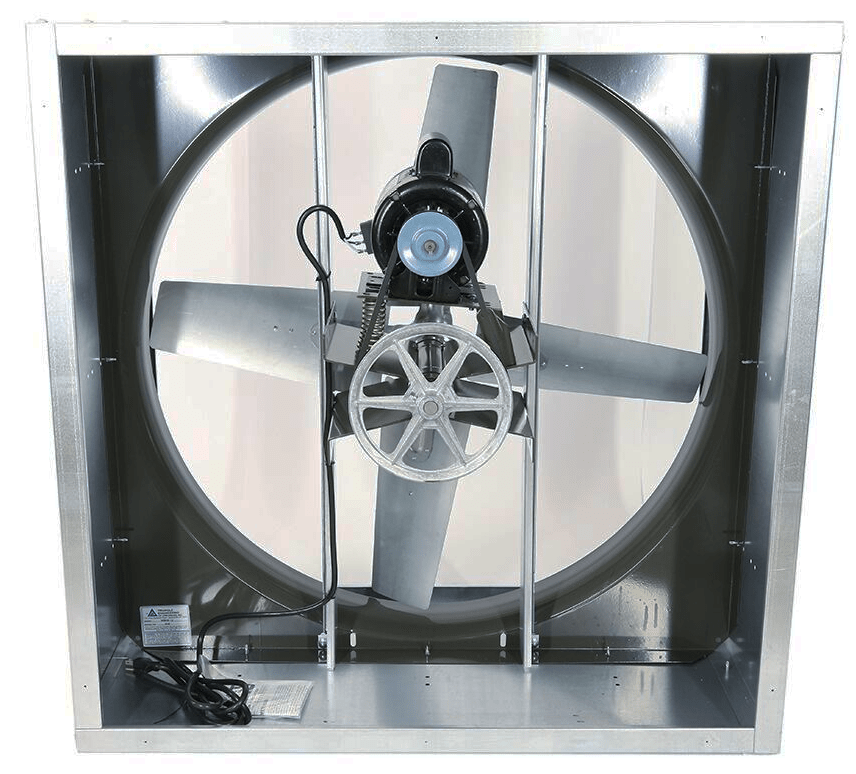

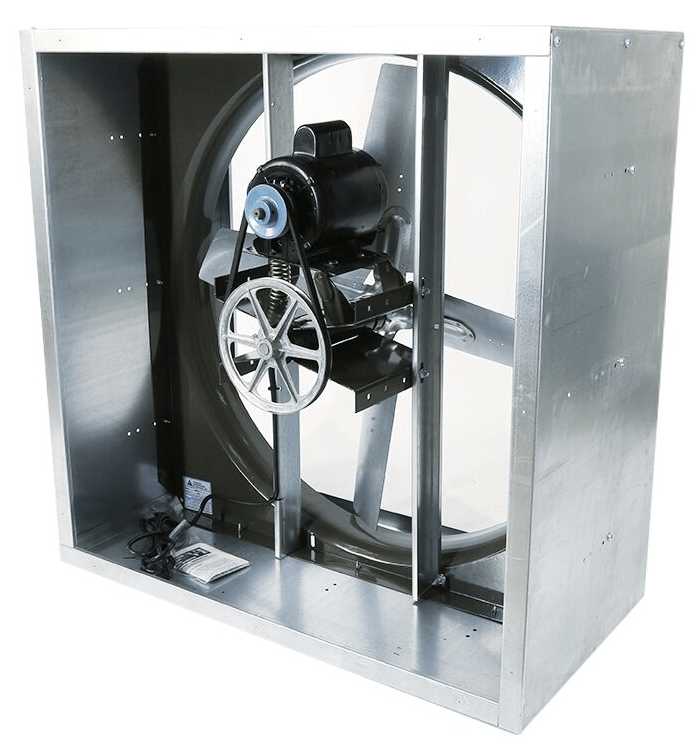

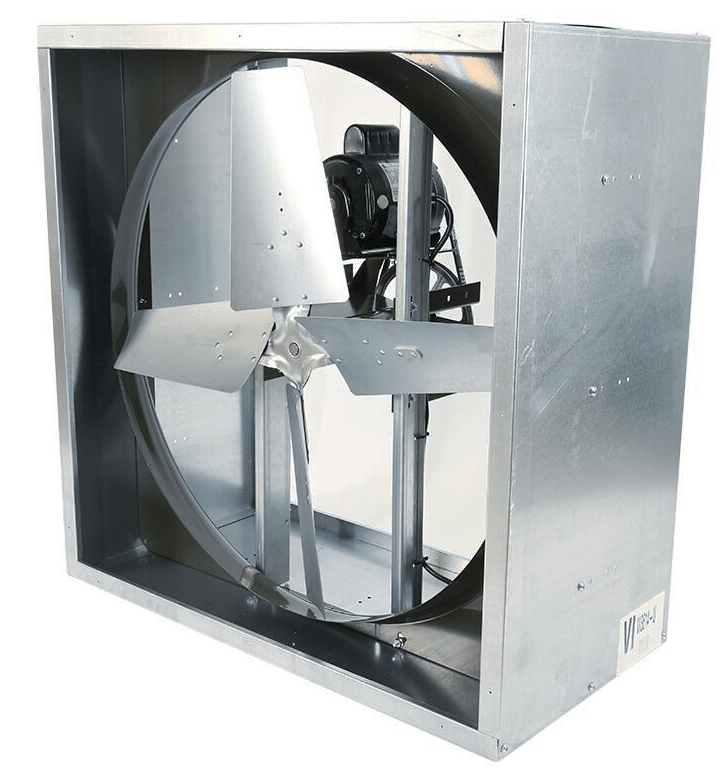

Triangle‚Äôs RVI Series Belt Drive Heavy Duty Industrial Supply Fans are designed to meet the supply airflow needs of factories, warehouses, gymnasiums, greenhouses, etc. The RVI Series Heavy Duty Industrial belt drive supply fans come standard with a polyester powder coated venturi to improve airflow and protect against corrosion as well as a heavy-gauge galvanized housing for corrosion resistance.

All standard RVI models up to 1.5 HP come equipped with Triangle‚Äôs exclusive X-Wing Belt Tensioner which reduces maintenance and extends belt and motor life.

FEATURES
Belt drive
Bronze powder coated rolled inlet venturi for efficient airflow
Rugged heavy gauge galvanized housing
Available in sizes from 24" to 60" blade diameter
Available with ODP and TE motors
