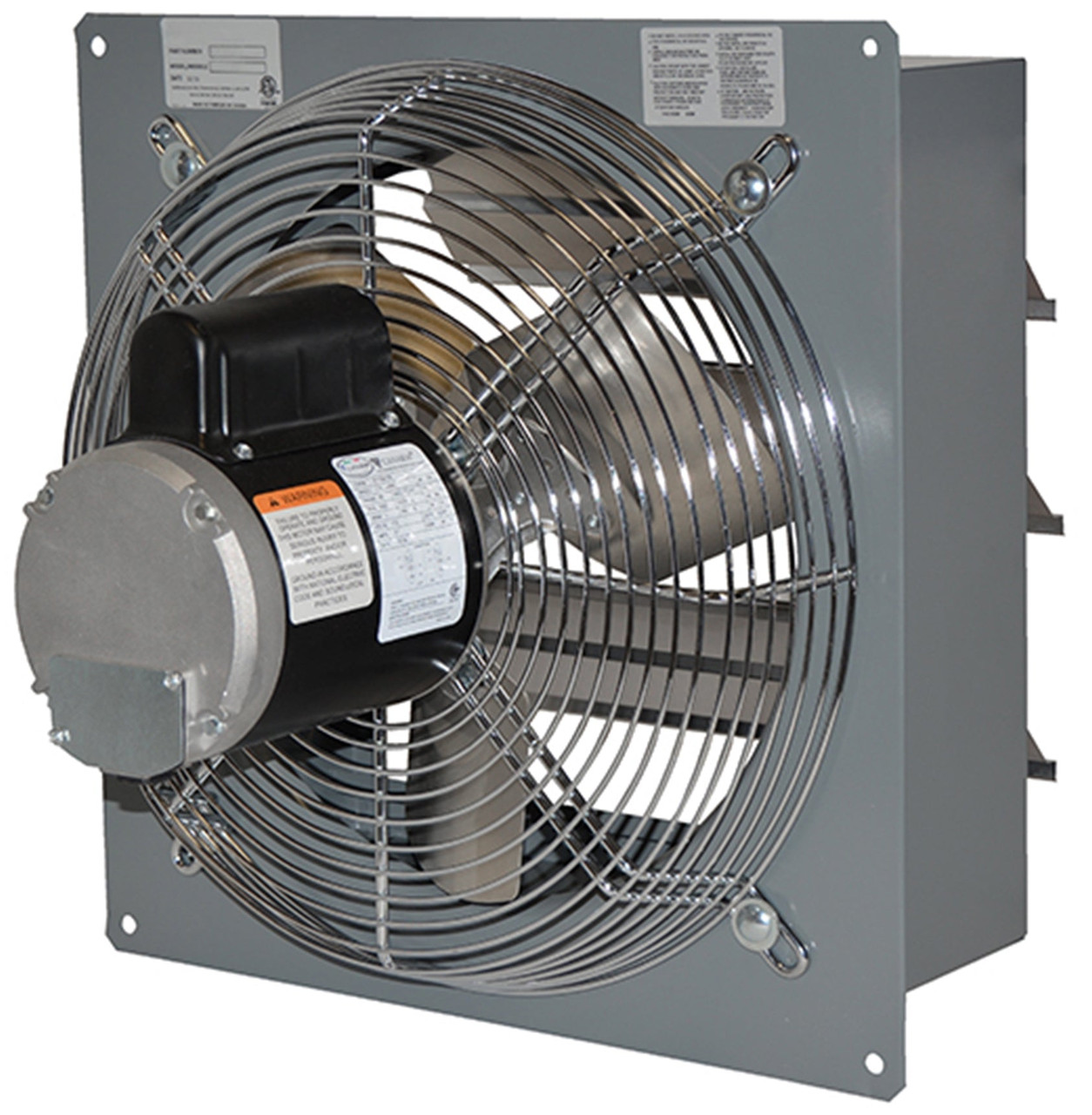

SD Exhaust Fan w/ Shutters 12 inch 1640 CFM Direct Drive S12-E1
Canarm
Item #: S12-E1
Blade Diameter
12.0"
CFM
1640
Phase
1 Phase
Voltage
115 AC
Specs for SD Exhaust Fan w/ Shutters 12 inch 1640 CFM Direct Drive S12-E1
Amp: 2.7
Blade Diameter: 12.0"
Blade Material: Heavy Gauge Aluminum
CFM: 1640
Dimensions: 17.25" x 17.25" x 17
Drive Type: Direct
Fan Type: Exhaust Fan
Harmonized System Code: 841459.0
Hertz: 60
Horsepower: 1/4
Made in the USA: No
Motor Type: TEFC
Phase: 1 Phase
RPM: 1625
Speed(s): 1 Speed
Voltage: 115 AC
Warehouse: New York
Warranty: 1 Year
Canarm/LFI’s standard fans follow a tradition of quality in design, materials and construction. All our standard fans are developed to be efficient and economically priced. Fans are now available with EC motors allowing you to save up to 70% on energy costs.
FEATURESSD12 - 3 Louvers
Single, two and variable speed models are available
All fans use a totally enclosed, thermally protected motor
Rugged steel welded box housing has a durable powder coated finish
Aluminum louver shutters are supported by long life nylon bushings (30”, 36”, 42” & 48” have PVC louvers)
12” - 24” models have heavy wire chrome plated OSHA guards on intake side of fan
12" - 24" models now upgraded with tie bar shutters and magnets for quieter operation and superior seal
30”, 36”, 42” & 48” models have grey powder coated guards
All fans are shipped completely assembled
