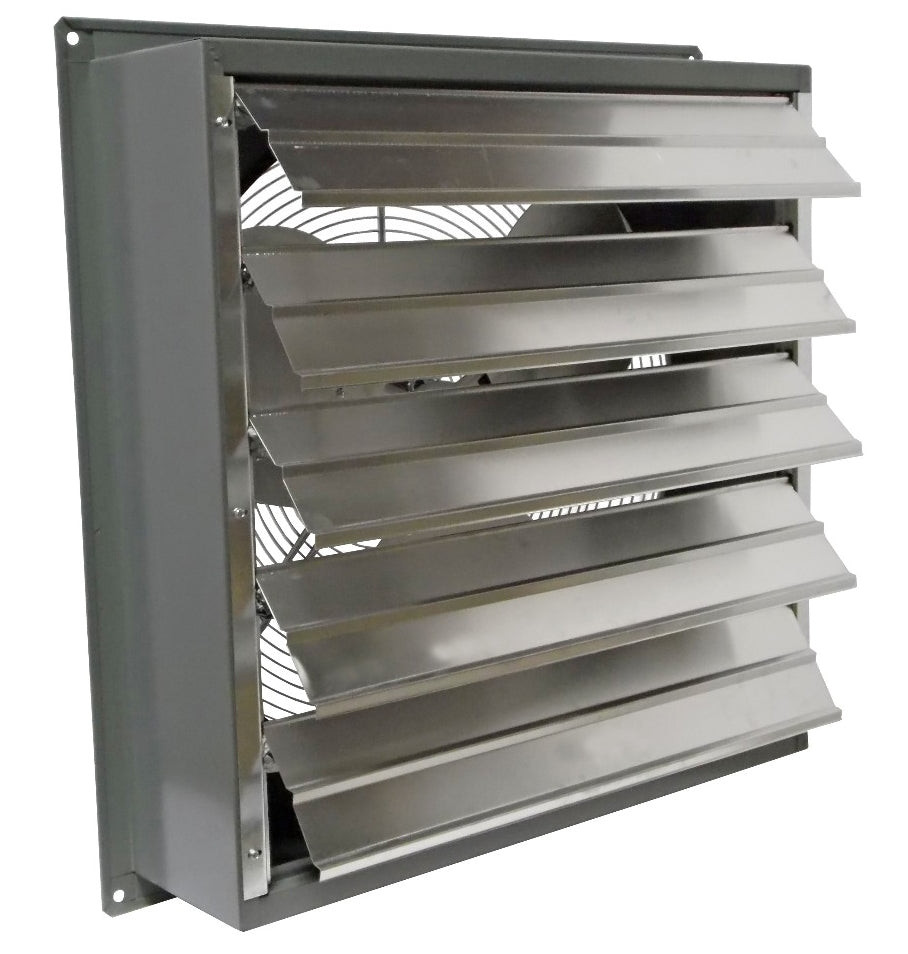

SD Explosion Proof Wall Mount Exhaust Fan w/ Shutters 8 inch 320 CFM SD08-XPF
Canarm
Item #: SD08-XPF
Blade Diameter
8.0"
CFM
320
Phase
1 Phase
Voltage
115 / 230 AC
Specs for SD Explosion Proof Wall Mount Exhaust Fan w/ Shutters 8 inch 320 CFM SD08-XPF
Amp: 6.6 / 3.3
Blade Diameter: 8.0"
Blade Material: Heavy Gauge Aluminum
CFM: 320
Dimensions: 13.25" x 13.25" x 21.5
Drive Type: Direct
Fan Type: Exhaust Fan
Hertz: 60
Horsepower: 1/3
Made in the USA: No
Motor Type: Explosion Proof
Phase: 1 Phase
RPM: 1625
Speed(s): 1 Speed
Voltage: 115 / 230 AC
Warehouse: New York
Warranty: 1 Year
NOTE:HAZARDOUS LOCATION FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
Canarm Explosion Proof Fans follow a tradition of quality in design, materials, and construction. Using our quality "Standard Fan" housing and motor mount as the basis for design, we have developed an efficient, economically priced Explosion Proof Fan. All Explosion Proof Fans have a single speed, dual voltage explosion proof motor that meets and conforms to the following standards:
MOTOR CLASSIFICATION
Class I - Group C & D
Class II - Group F & G
SD08 - 2 Louvers
Totally enclosed, ball bearing motor with thermal overload protection
The fan blades are well-balanced, heavy gauge aluminum
The rugged steel welded box housing has a durable powder coated finish
Aluminum louver shutters are supported by long life nylon bushings
Heavy wire chrome plated OSHA guards on intake side of fan
All fans are shipped completely assembled
