SD Green Series Exhaust Fan w/ Shutters 12 inch Variable Speed 1650 CFM Direct Drive SD12-EC
Canarm
Item #: SD12-EC
Blade Diameter
12.0"
CFM
1650
Phase
1 Phase
Voltage
115 / 208 / 230 AC
Specs for SD Green Series Exhaust Fan w/ Shutters 12 inch Variable Speed 1650 CFM Direct Drive SD12-EC
Amp: 2.8 / 1.7 / 1.3
Blade Diameter: 12.0"
Blade Material: Steel
CFM: 1650

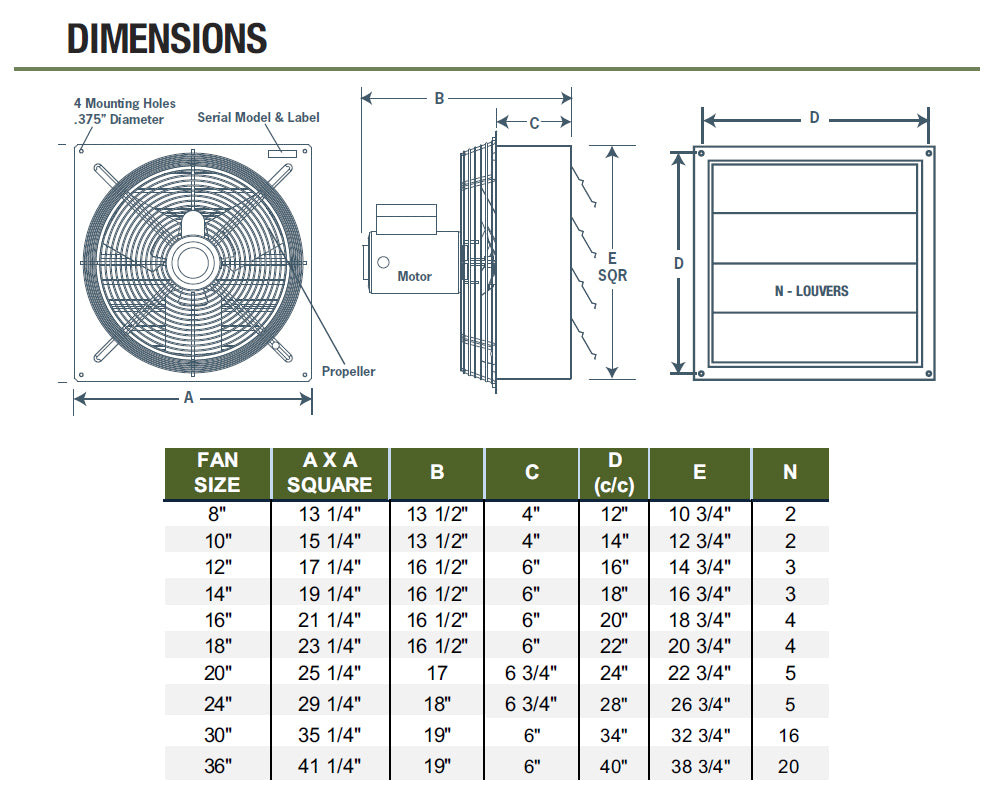

Dimensions: 17.25" x 17.5" x 16.5
Drive Type: Direct
Fan Type: Exhaust Fan
Hertz: 60
Horsepower: 1/4
Made in the USA: No
Motor Type: TEFC
Phase: 1 Phase
RPM: 1800
Speed(s): Variable Speed
Voltage: 115 / 208 / 230 AC
Warehouse: New York
Warranty: 1 Year
Canarm/LFI’s standard fans follow a tradition of quality in design, materials and construction. All our standard fans are developed to be efficient and economically priced. Fans are now available with EC motors allowing you to save up to 70% on energy costs.
FEATURESSD12 - 3 Louvers
Available in 8” to 36" sizes.
High efficiency totally enclosed EC smart motor
Rugged steel welded box housing with durable powder coat finish
OSHA guard on intake side of fan
8" - 24" models now upgraded with tie bar shutters and magnets for quieter operation and superior seal
All fans are shipped completely assembled
Fans with variable speed motors can be operated as an energy efficient single speed fan or in variable operation with the proper controller
