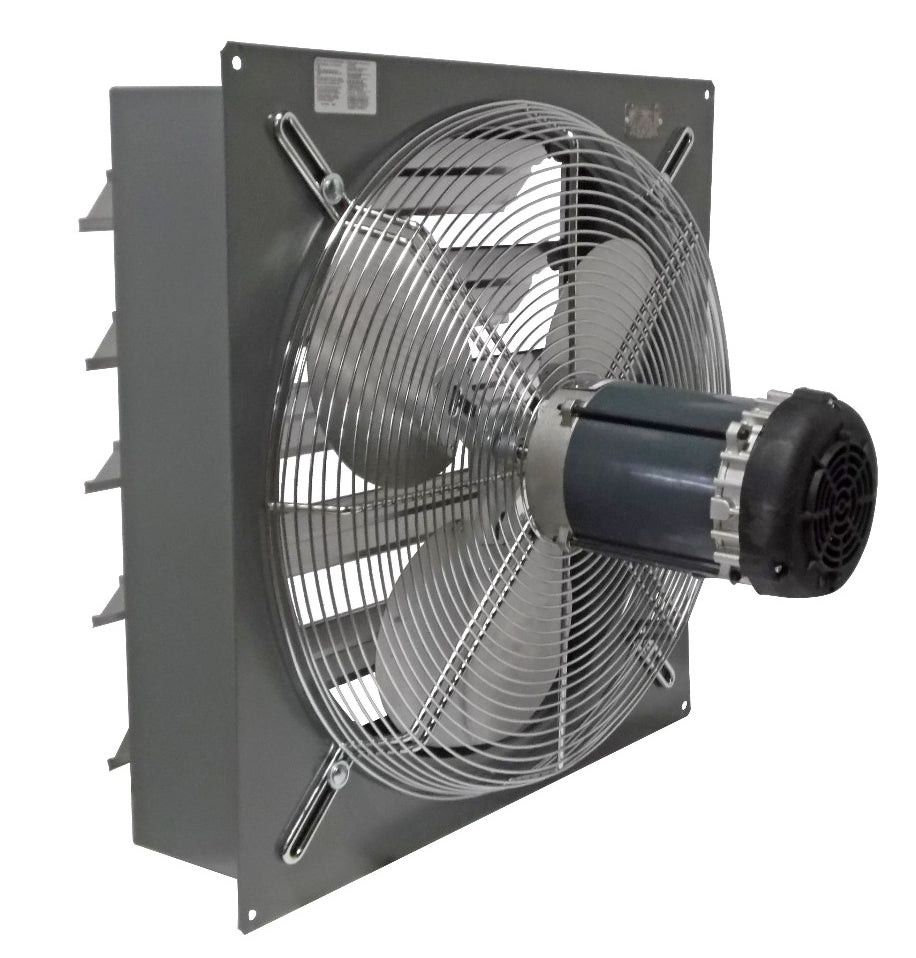

SD Explosion Proof Wall Mount Exhaust Fan w/ Shutters 24 inch 5500 CFM SD24-XPF

Specs Details Downloads

Specs for SD Explosion Proof Wall Mount Exhaust Fan w/ Shutters 24 inch 5500 CFM SD24-XPF

Amp: 6.6 / 3.3 Blade Diameter: 24.0" Blade Material: Heavy Gauge Aluminum CFM: 5500 Dimensions: 29.25" x 29.25" x 26.5 Drive Type: Direct Fan Type: Exhaust Fan Hertz: 60 Horsepower: 1/3 Made in the USA: No Motor Type: Explosion Proof Phase: 1 Phase RPM: 1625 Speed(s): 1 Speed Voltage: 115 / 230 AC Warehouse: New York Warranty: 1 Year

NOTE:HAZARDOUS LOCATION FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.

Canarm Explosion Proof Fans follow a tradition of quality in design, materials, and construction. Using our quality "Standard Fan" housing and motor mount as the basis for design, we have developed an efficient, economically priced Explosion Proof Fan. All Explosion Proof Fans have a single speed, dual voltage explosion proof motor that meets and conforms to the following standards:

MOTOR CLASSIFICATION
Class I - Group C & D
Class II - Group F & G

FEATURES
SD24 - 5 Louvers
Totally enclosed, ball bearing motor with thermal overload protection
The fan blades are well-balanced, heavy gauge aluminum
The rugged steel welded box housing has a durable powder coated finish
Aluminum louver shutters are supported by long life nylon bushings
Heavy wire chrome plated OSHA guards on intake side of fan
All fans are shipped completely assembled
