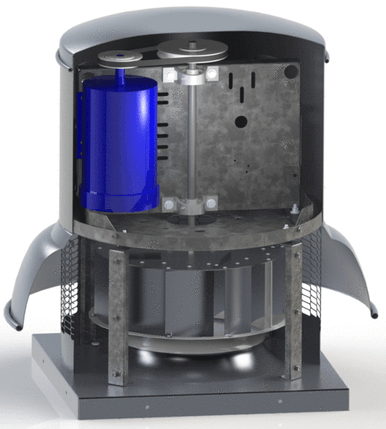

SDB Centrifugal Roof Exhaust 30 inch 7098 CFM Belt Drive 1 Phase SDB30QH1S

SDB belt drive fans are designed to exhaust air in high static pressure applications to 1.75 inch. Belt drive results in lower operating RPM and sound levels, making the Model SDB well suited to applications where quiet operation is important. The non-overloading backward inclined wheel with its higher static pressure capability makes this unit suitable for either ducted or non-ducted applications. It’s roof mounting permits location near the area to be ventilated, allowing short duct runs and more efficient operation.

SDBs are primarily used for the exhaust of relatively clean air from a wide range of commercial, industrial and institutional environments such as manufacturing and assembly plants, office buildings, schools, hospitals, restaurants, athletic facilities and many others.

FEATURES
Temperature rating up to 170 degrees F
Spun aluminum exterior
Belt drives permit easy performance adjustments when needed
Curved non-overloading backward inclined wheel for efficiency at higher static pressures
AMCA tested
cULus listed
Miami-Dade NOA, Florida Project Approval and Texas Department of Insurance Listing available upon request
