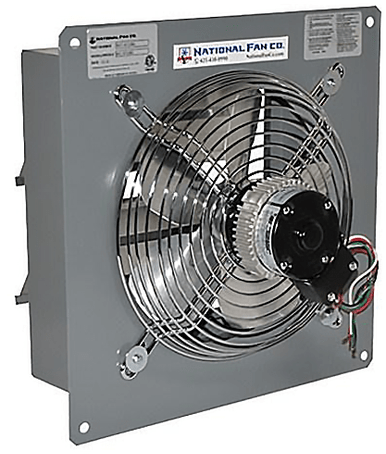

AirFlo-SF Exhaust Fan w/ Shutters 10 inch 703 CFM 2 Speed SF10BS

Standard Wall Fans follow a tradition of quality in design, materials and construction. All our Standard Wall Fans are developed to be efficient and economically priced.

FEATURES

All fans use a totally enclosed, ball bearing motor with thermal overload protection.

The motor mount is manufactured with heavy welded rods and has a powder coated finish.

The fan blades are well-balanced, heavy gauge aluminum.

The rugged steel welded box housing has durable powder coated finish.

Aluminum shutters are supported by long life nylon bushings (30" and 36" have PVC shutters).

All fans are shipped completely assembled.

1 Phase

1/20 HP

2 Speed

1600 / 1300 RPM

1.7 AMPS

115 Voltage

13 lbs.

1 Year Limited Warranty

*NOTE: The motor Full Load Amperage ratings are meant to be used as a General guideline only. The ratings are from the primary motor supplier. These amperage ratings may vary slightly if a different motor supplier is used. It is also possible that a motor manufacture may modify / improve / update a motor in which the amperage rating will change slightly.

DIMENSIONS:

A = 15 1/4"
B = 10"
C = 4"
D (Center to Center) = 14"
E = 12 3/4"
N = 2
