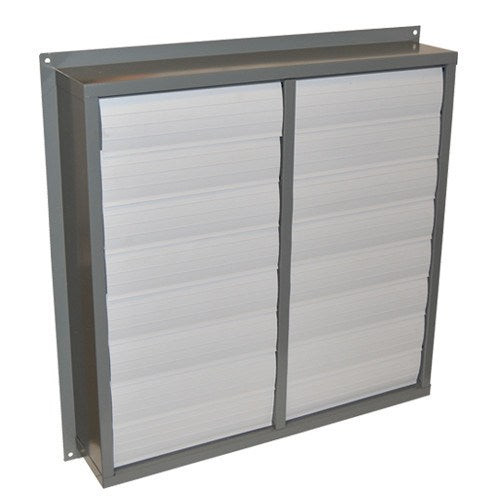

AirFlo-SF Exhaust Fan w/ Shutters 30 inch 8160 CFM 1 Speed SF30G1D
Canarm
Item #: SF30G1D
Blade Diameter
30.0"
CFM
8160
Phase
1 Phase
Voltage
115 / 230 AC
Specs for AirFlo-SF Exhaust Fan w/ Shutters 30 inch 8160 CFM 1 Speed SF30G1D
Amp: 6.4 / 3.2
Blade Diameter: 30.0"
Blade Material: Aluminum
CFM: 8160
Dimensions: 35.25" x 35.25" x 19
Drive Type: Direct
Fan Type: Exhaust Fan
Hertz: 60
Horsepower: 1/3
Made in the USA: No
Phase: 1 Phase
RPM: 1100
Speed(s): 1 Speed
Voltage: 115 / 230 AC
Warehouse: New York
Warranty: 1 Year
Standard Wall Fans follow a tradition of quality in design, materials and construction. All our Standard Wall Fans are developed to be efficient and economically priced.
FEATURESAll fans use a totally enclosed, ball bearing motor with thermal overload protection.
The motor mount is manufactured with heavy welded rods and has a powder coated finish.
The fan blades are well-balanced, heavy gauge aluminum.
The rugged steel welded box housing has durable powder coated finish.
PVC louvers shutters are supported by long life nylon bushings.
All fans are shipped completely assembled.
1 Phase
1/3 HP
1 Speed
1100 RPM
4.4 AMPS
115/230 Voltage
72 lbs.
1 Year Limited Warranty
*NOTE: The motor Full Load Amperage ratings are meant to be used as a General guideline only. The ratings are from the primary motor supplier. These amperage ratings may vary slightly if a different motor supplier is used. It is also possible that a motor manufacture may modify / improve / update a motor in which the amperage rating will change slightly.
DIMENSIONS:
A = 35 1/4"
B = 19"
C = 6"
D (Center to Center) = 34"
E = 32 3/4"
N = 16
