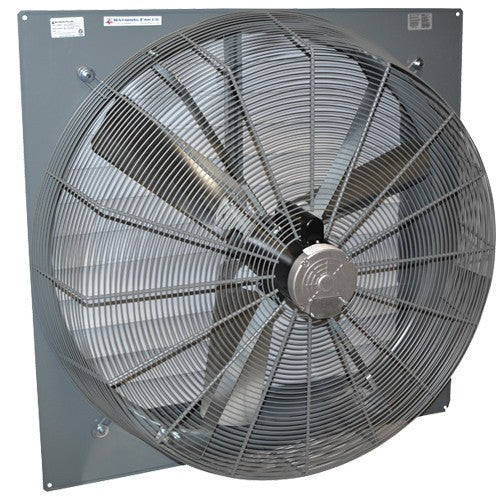

AirFlo-SF Exhaust Fan w/ Shutters 42 inch 15198 CFM 1 Speed SF42H1D
Canarm
Item #: SF42H1D
Blade Diameter
42.0"
CFM
15198
Phase
1 Phase
Voltage
230 AC
Specs for AirFlo-SF Exhaust Fan w/ Shutters 42 inch 15198 CFM 1 Speed SF42H1D
Amp: 11/5.5
Blade Diameter: 42.0"
Blade Material: Aluminum
CFM: 15198
Dimensions: 47.25" x 47.25" x 17.75
Drive Type: Direct
Fan Type: Exhaust Fan
Hertz: 60
Horsepower: 1
Made in the USA: No
Phase: 1 Phase
RPM: 850
Speed(s): 1 Speed
Voltage: 230 AC
Warehouse: New York
Warranty: 1 Year
Standard Wall Fans follow a tradition of quality in design, materials and construction. All our Standard Wall Fans are developed to be efficient and economically priced.
FEATURES:All fans use a totally enclosed, ball bearing motor with thermal overload protection.
The motor mount is manufactured
with heavy welded rods and has a powder coated finish.
The fan blades are well-balanced, heavy gauge aluminum.
The rugged steel welded box housing has durable powder coated finish.
PVC louvers shutters are supported by long life nylon bushings.
All fans are shipped completely assembled.
1 Phase
1 HP
1 Speed
850 RPM
5.5 AMPS
230 Voltage
122 lbs.
1 Year Limited Warranty
*NOTE: The motor Full Load Amperage ratings are meant to be used as a General guideline only. The ratings are from the primary motor supplier. These amperage ratings may vary slightly if a different motor supplier is used. It is also possible that a motor manufacture may modify / improve / update a motor in which the amperage rating will change slightly.
DIMENSIONS:
A = 47 1/4"
B = 17 3/4"
C = 6 3/4"
D (Center to Center) = 46"
E = 44 3/4"
N = 24
