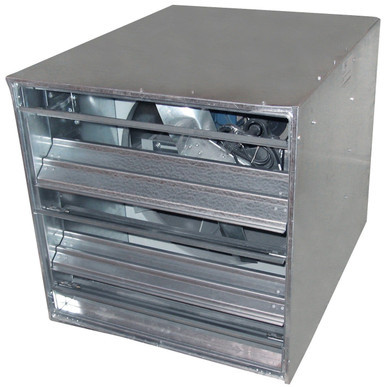

SXB Supply Fan 42 inch 17864 CFM Belt Drive SXB42CBMD10300
Canarm
Item #: SXB42CBMD10300
Blade Diameter
42.0"
CFM
17864
Phase
1 Phase
Voltage
120 AC
Specs for SXB Supply Fan 42 inch 17864 CFM Belt Drive SXB42CBMD10300
Blade Diameter: 42.0"
Blade Material: Galvanized Steel
CFM: 17864
Drive Type: Belt
Hertz: 60
Horsepower: 3
Made in the USA: No
Motor Type: TEFC
Phase: 1 Phase
RPM: 590
Speed(s): 1 Speed
Voltage: 120 AC
Warehouse: New York
Warranty: 1 Year
NOTE: THIS PRODUCT IS NON-RETURNABLE AND CANNOT BE CANCELLED.
The SXB wall supply fan is designed for general ventilation in industrial applications including factories, warehouses, underground parking garages, etc. These fans are typically used for low pressure applications with little to no duct work.
These fans are designed and constructed for efficient and economical operation at low speeds and low noise levels. These fans are used in supply applications. This fan comes complete with cabinet, motorized steel control damper and guard.
FEATURES
Heavy gauge steel fan panel with deep spun and flared venturi for maximum efficiency
Heavy gauge welded steel motor and bearing supports
Galvanized heavy gauge steel fan blades that are statically and dynamically balanced.
Heavy duty cast iron pillow block bearings
TEFC motors are standard
Complete with cabinet, motorized steel control damper and discharge guard
The SXB wall supply fan is designed for general ventilation in industrial applications including factories, warehouses, underground parking garages, etc. These fans are typically used for low pressure applications with little to no duct work.
These fans are designed and constructed for efficient and economical operation at low speeds and low noise levels. These fans are used in supply applications. This fan comes complete with cabinet, motorized steel control damper and guard.
FEATURES
Heavy gauge steel fan panel with deep spun and flared venturi for maximum efficiency
Heavy gauge welded steel motor and bearing supports
Galvanized heavy gauge steel fan blades that are statically and dynamically balanced.
Heavy duty cast iron pillow block bearings
TEFC motors are standard
Complete with cabinet, motorized steel control damper and discharge guard
The following file(s) are provided by the manufacturer.
