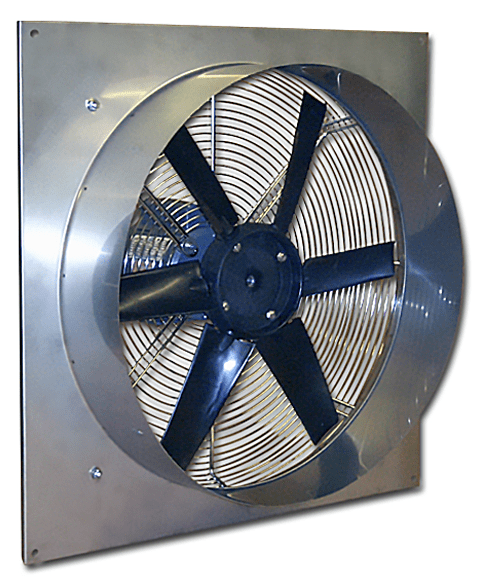

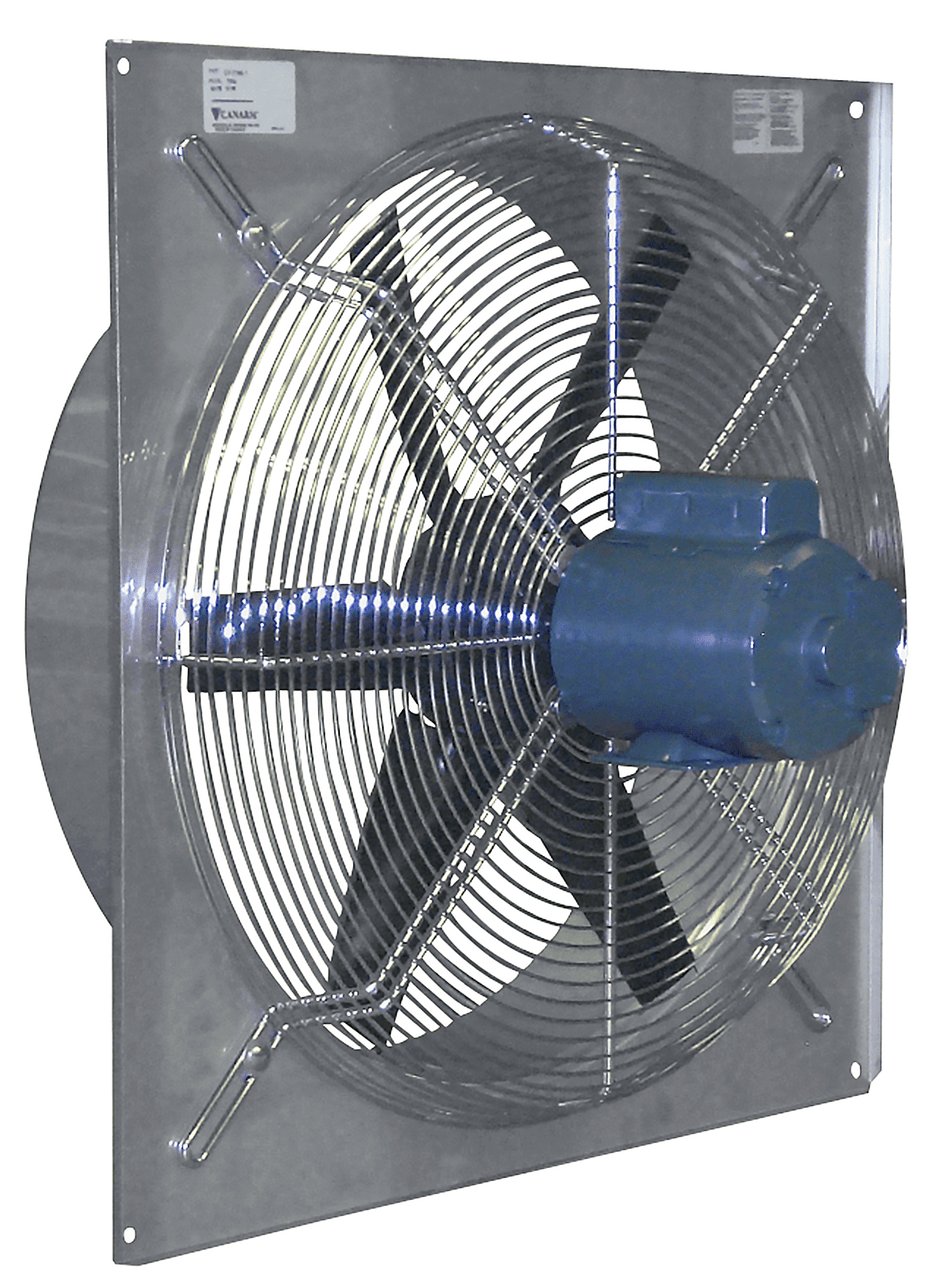

Stainless Steel Panel Exhaust Fan 24 inch 5200 CFM Direct Drive TF24

Specs Details Downloads

Specs for Stainless Steel Panel Exhaust Fan 24 inch 5200 CFM Direct Drive TF24

Amp: 5 / 2.5 Blade Diameter: 24.0" Blade Material: Polypropylene CFM: 5200 Drive Type: Direct Hertz: 60 Horsepower: 1/2 Made in the USA: No Motor Type: TEFC Phase: 1 Phase RPM: 1625 Speed(s): Variable Speed Voltage: 115 / 230 AC Warehouse: New York Warranty: 1 Year

All variable speed fans will run at a single speed unless used with a controller. Please see our control options here for a control that pairs with this fan.

TF series stainless steel circulating panel fans are designed for use as air tube circulators, exhaust and chimney or circulating fans for hog, poultry, dairy and greenhouses. Dual voltage, totally enclosed, variable speed, high efficiency ball bearing motors with thermal overload protection Canarm's exclusive "Rotair" air foil polypropylene blade is fiberglass reinforced and designed to deliver high volumes of air quietly and efficiently.

FEATURES
Stainless steel panel will not rust and has a 4" extension to allow the installation of an air bag.
All fans are shipped completely assembled.
Four pre-punched mounting holes make the "TF" series fans easy to hang from chains or for permanent installation as a sidewall exhaust fan or chimney fan
The TF series stainless steel is ideally suited for use in recirculating ducts or Air Bags. An extension on the venturi is designed to make Air Bag attachment quick and easy.
