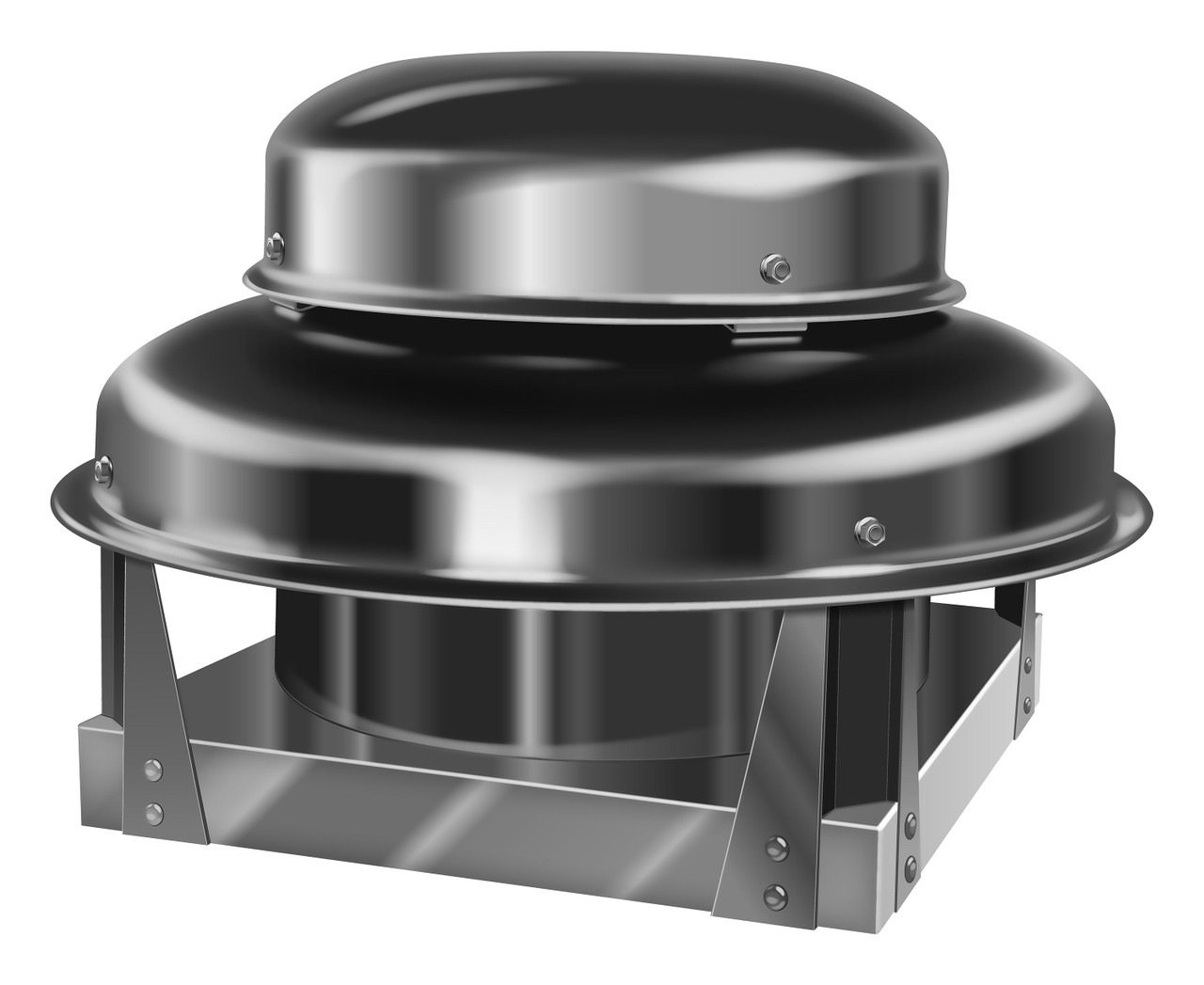

U.S. Fan Downblast Centrifugal Roof Exhaust Fan w/ EC Motor 11.8 inch 1397 CFM Direct Drive USPRN118EC0020
U.S. Fan
Item #: USPRN118EC0020
Blade Diameter
11.8"
CFM
182
Phase
1 Phase
Voltage
110 / 115 / 208 / 220 / 230 AC
Specs for U.S. Fan Downblast Centrifugal Roof Exhaust Fan w/ EC Motor 11.8 inch 1397 CFM Direct Drive USPRN118EC0020
Blade Diameter: 11.8"
CFM: 182
Drive Type: Direct
Horsepower: 1/4
Made in the USA: Yes
Motor Type: ODP
Phase: 1 Phase
RPM: 1725
Voltage: 110 / 115 / 208 / 220 / 230 AC
Warehouse: Oklahoma
Warranty: 2 Year
NOTE: CFM IS AT 1/4" OF STATIC PRESSURE.
Model PRN direct drive fans are centrifugal power roof ventilators designed for exhausting clean air. Capacities up to 2770 CFM and up to 1 inch static pressure. The PRN is a downblast exhauster suitable for all types of commercial and institutional buildings such as schools, hospitals, office buildings, and retail stores.
FEATURES
Miami-Dade County Approved
Heavy gauge aluminum housing
Curb base and inlet are one piece with continuous welded corners
Steel fasteners are zinc dichromate plated
Made in the U.S.A.
BASE DIMENSIONS
21" x 21"
The following file(s) are provided by the manufacturer.
