V Panel Exhaust Fan 1 Speed 48 inch 18100 CFM Belt Drive V4814-U
Triangle Engineering
Item #: V4814-U
Blade Diameter
48.0"
CFM
18200
Phase
1 Phase
Voltage
115 / 230 AC
Specs for V Panel Exhaust Fan 1 Speed 48 inch 18100 CFM Belt Drive V4814-U
Amp: 13.0 / 6.5
Blade Diameter: 48.0"
CFM: 18200
Drive Type: Belt
Hertz: 60
Horsepower: 3/4
Made in the USA: Yes
Motor Type: ODP
Phase: 1 Phase
RPM: 410
Speed(s): 1 Speed
Voltage: 115 / 230 AC
Warehouse: Arkansas
Warranty: 1 Year

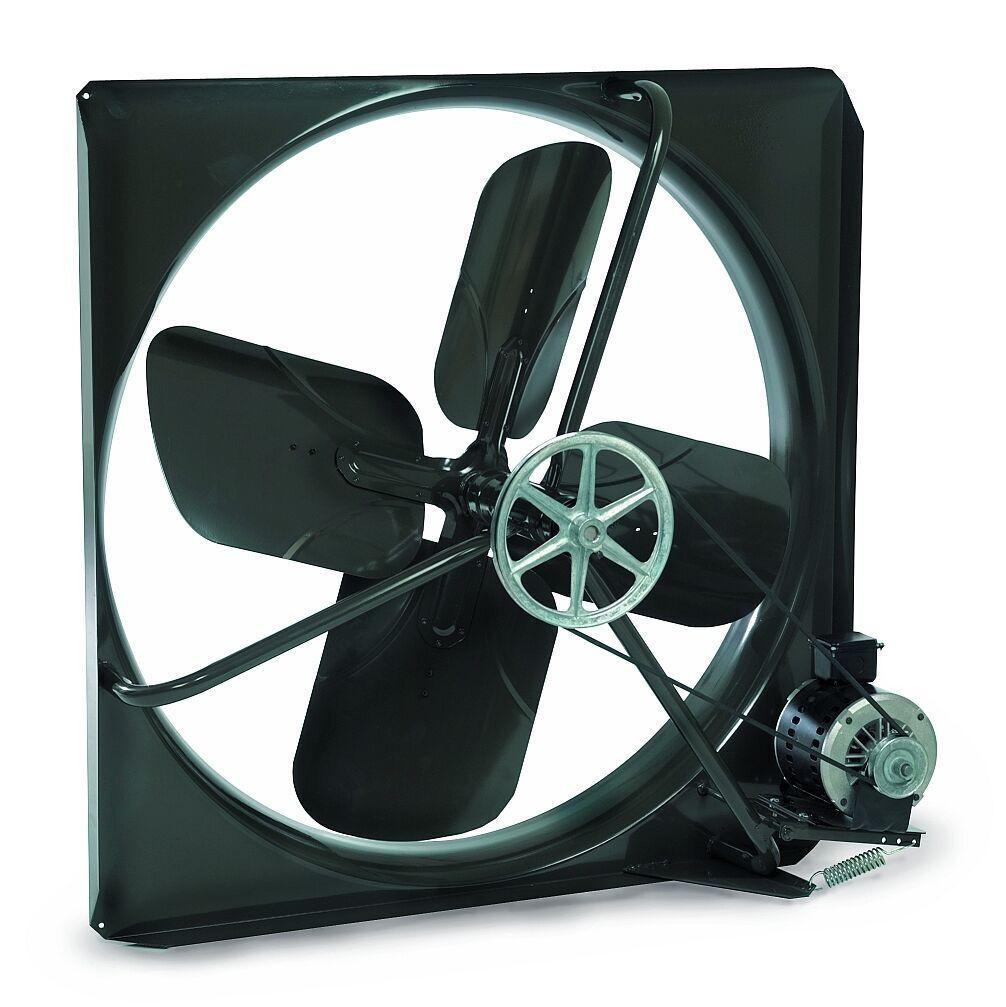

Triangle’s V Series Belt Drive Industrial Wall Exhaust Fans are designed with long lasting performance in mind and are well suited for exhausting factories, gymnasiums, and warehouses. Each of the V Series Industrial Wall Exhaust Fans come standard with automatic belt tensioning to reduce maintenance and to extend motor and belt life.
FEATURES
Belt drive
Deep pitched blades for maximum air flow
Rolled venturi for improved airflow
Automatic belt tensioner
Two-speed, single-phase motors available up to 1/2HP, 115V
All welded construction
Durable polyester powder coated finish
