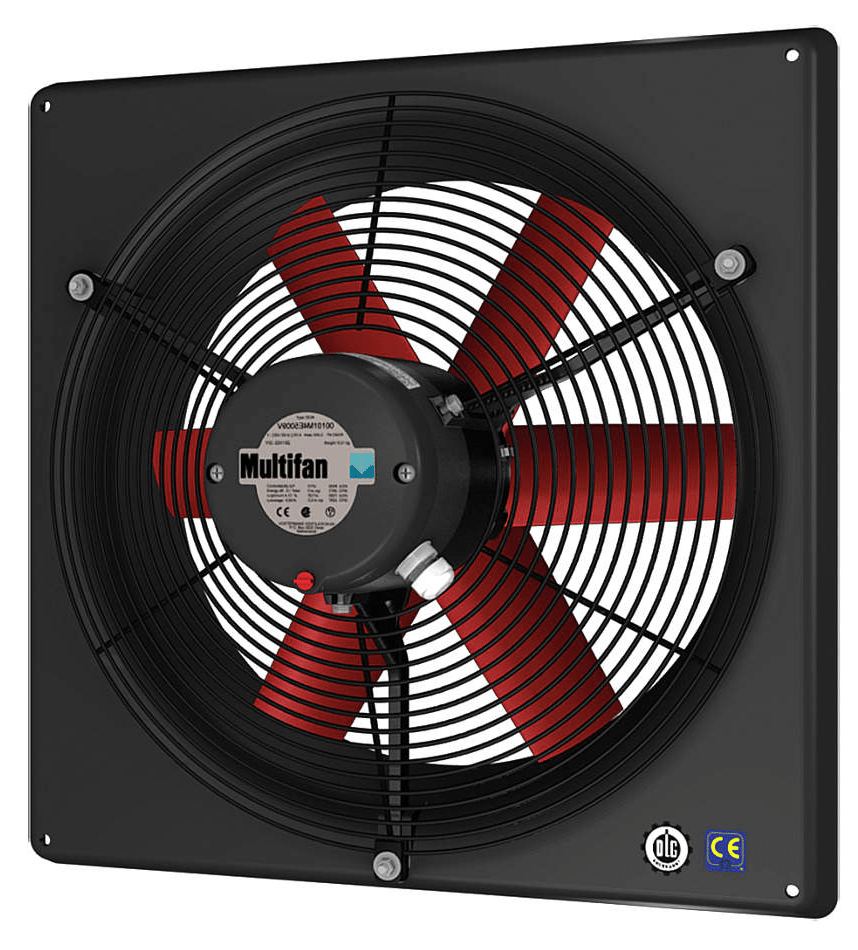

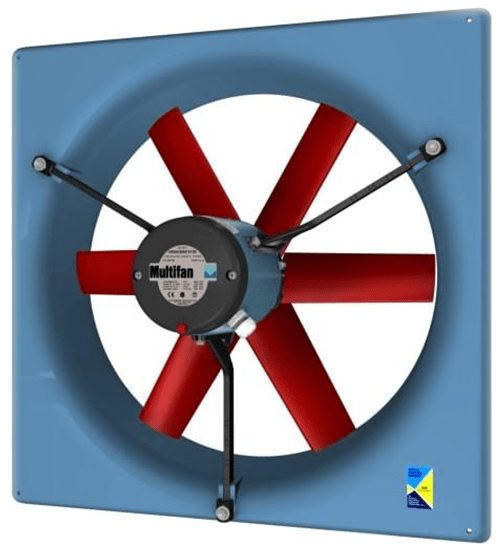

Non-Corrosive Panel Exhaust Fan 24 inch 7240 CFM 3 Phase 240V/460V Direct Drive V6D63K7M71100
Multifan
Item #: V6D63K7M71100
Blade Diameter
24.0"
CFM
7240
Phase
1 Phase
Voltage
240 / 460 AC
Specs for Non-Corrosive Panel Exhaust Fan 24 inch 7240 CFM 3 Phase 240V/460V Direct Drive V6D63K7M71100
Amp: 1.3
Blade Diameter: 24.0"
Blade Material: Polypropylene
CFM: 7240
Drive Type: Direct
Fan Type: Wall Exhaust Fan
Hertz: 60
Horsepower: 1
Phase: 1 Phase
RPM: 1000
Speed(s): 1 Speed
Voltage: 240 / 460 AC
Warehouse: Illinois
Warranty: 3 Year
Watts (High): 700
These fans are exclusively composed of corrosion-resistant materials such as high-tech engineering plastics, fiberglass and treated metals making them very suitable for usage in harsh environments.Thanks to the broad product range and its simple mounting options, this type of fan is suitable for a variety of applications.
FEATURES
Standard suitable for ambient temperatures up to 104 degrees Fahrenheit
Water and dust resistant fan motor (IP55)
Class F insulation
Low noise level
Polypropylene / glass fiber impellers
Stainless steel fasteners
The following file(s) are provided by the manufacturer.
