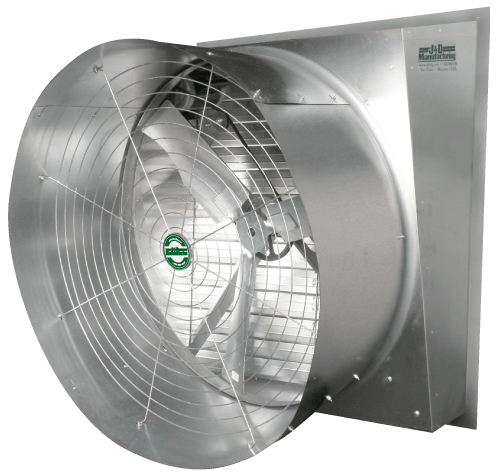

Typhoon Slant Wall Exhaust Fan w/ Cone 50 inch Energy Efficient 21111 CFM 3 Phase Belt Drive VFS503CS-E
J & D Manufacturing
Item #: VFS503CS-E
Blade Diameter
50.0"
CFM
21600
Phase
3 Phase
Voltage
208 / 230 / 460 AC
Specs for Typhoon Slant Wall Exhaust Fan w/ Cone 50 inch Energy Efficient 21111 CFM 3 Phase Belt Drive VFS503CS-E
Amp: 3.1 / 1.4
Blade Diameter: 50.0"
Blade Material: Galvanized Steel
CFM: 21600
Drive Type: Belt
Fan Type: Exhaust Fan
Hertz: 60
Horsepower: 1
Phase: 3 Phase
RPM: 547
Speed(s): 1 Speed
Voltage: 208 / 230 / 460 AC
Warehouse: Wisconsin
Watts (High): 22.5
The Typhoon slant wall exhaust fan from J&D Manufacturing has a heavy gauge galvanized housing and X-frame motor mount to provide a solid structure. Typhoon fans include an aluminum shutter with tie bar and galvanized shutter clips to hold the shutter tight to the frame for less vibration. With a quick twist of the clips, the shutter can be removed for easy cleaning and maintenance. Typhoons are designed for exceptional performance, low maintenance and low operating cost for your agricultural, horticultural or industrial application.
FEATURESHeavy duty 18 gauge galvanized housing
Available in 24″ – 50″ models
Smooth spun venturi to maximize airflow
Rugged X-frame motor mount for stability and quiet operation
Available with or without a performance boosting cone
Ships fully assembled except shutter and/or cone
3, 4, or 6 blade galvanized or 3 blade cast aluminum props
Two speed available on 50" Single Phase
Optional ¬Ω" x 1" guard available to mount on the intake side to meet OSHA requirements (allowing safe fan installation at any height)
Totally enclosed, maintenance-free, high-efficiency motors have completely sealed ball bearings
