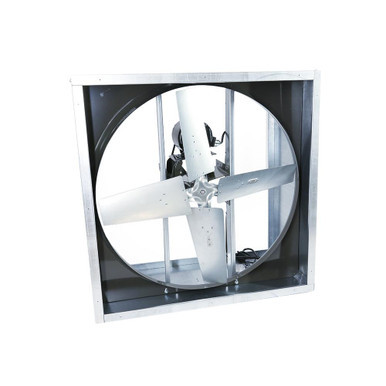

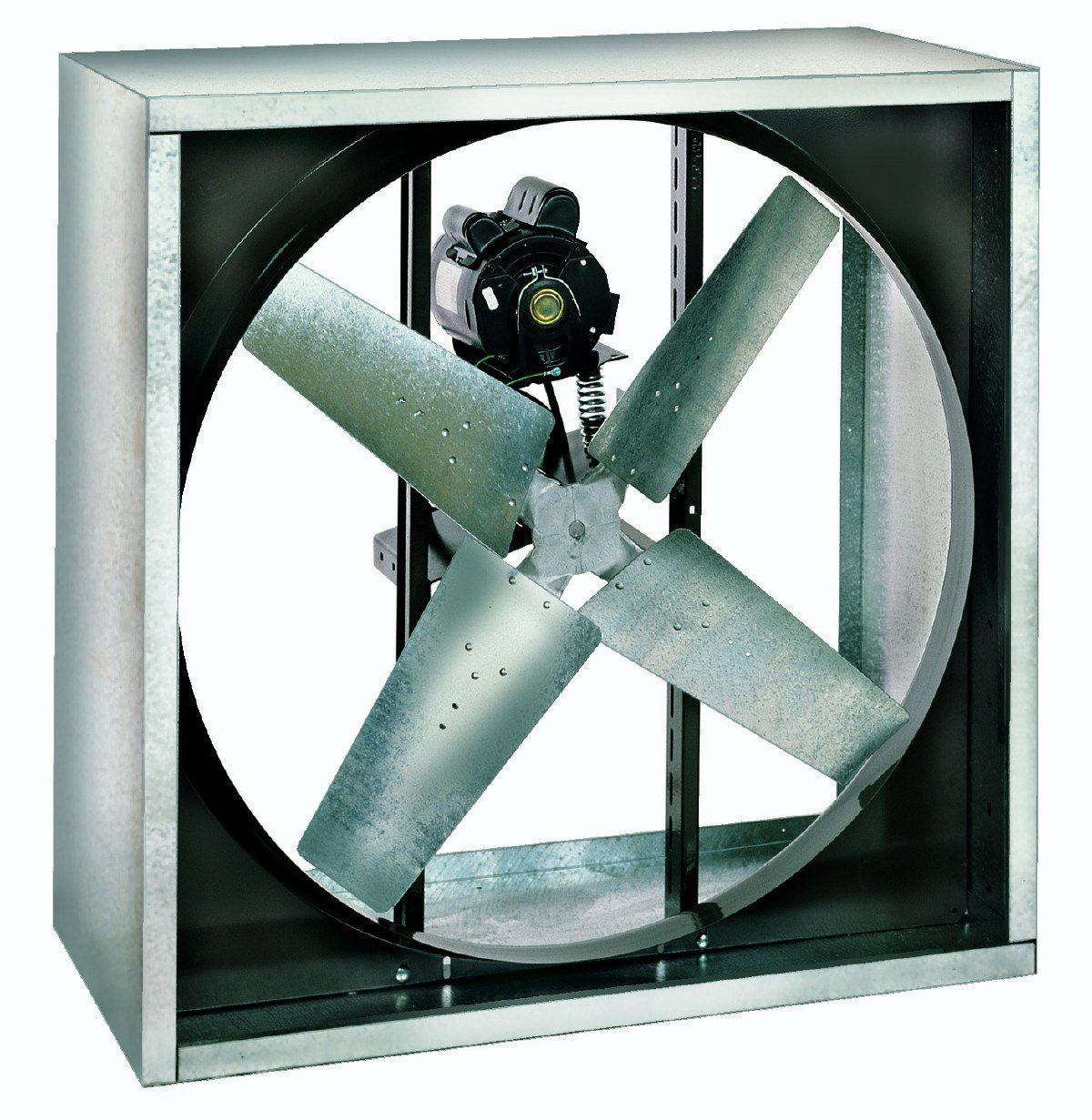

VI Cabinet Exhaust Fan Totally Enclosed 24 inch 5000 CFM 115/230 Volt Belt Drive VI2413T-U

Specs Details Downloads

Specs for VI Cabinet Exhaust Fan Totally Enclosed 24 inch 5000 CFM 115/230 Volt Belt Drive VI2413T-U

Amp: 5.5 Blade Diameter: 24.0" Blade Material: Steel CFM: 5000 Drive Type: Belt Hertz: 60 Horsepower: 1/2 Made in the USA: Yes Motor Type: ODP Phase: 1 Phase Speed(s): 1 Speed Voltage: 115 / 230 AC Warehouse: Arkansas Warranty: 1 Year

VI Series Industrial fans are designed for use in factories, steel mills, machine shops or anywhere large volumes of warm or stagnant air must be removed. Standard units are available from 1/3 HP to 5 HP (4,100 CFM to 43,100 CFM). VI fans feature extra-heavy-duty steel components & frame with a unique fastening system for easy field adjustment. The painted surfaces have a durable powder-coat finish.

FEATURES
Bronze powder coated rolled inlet venturi for efficient airflow
Rugged heavy gauge galvanized housing
Available in sizes from 24" to 60" blade diameter
Available with ODP, TE and HL motors

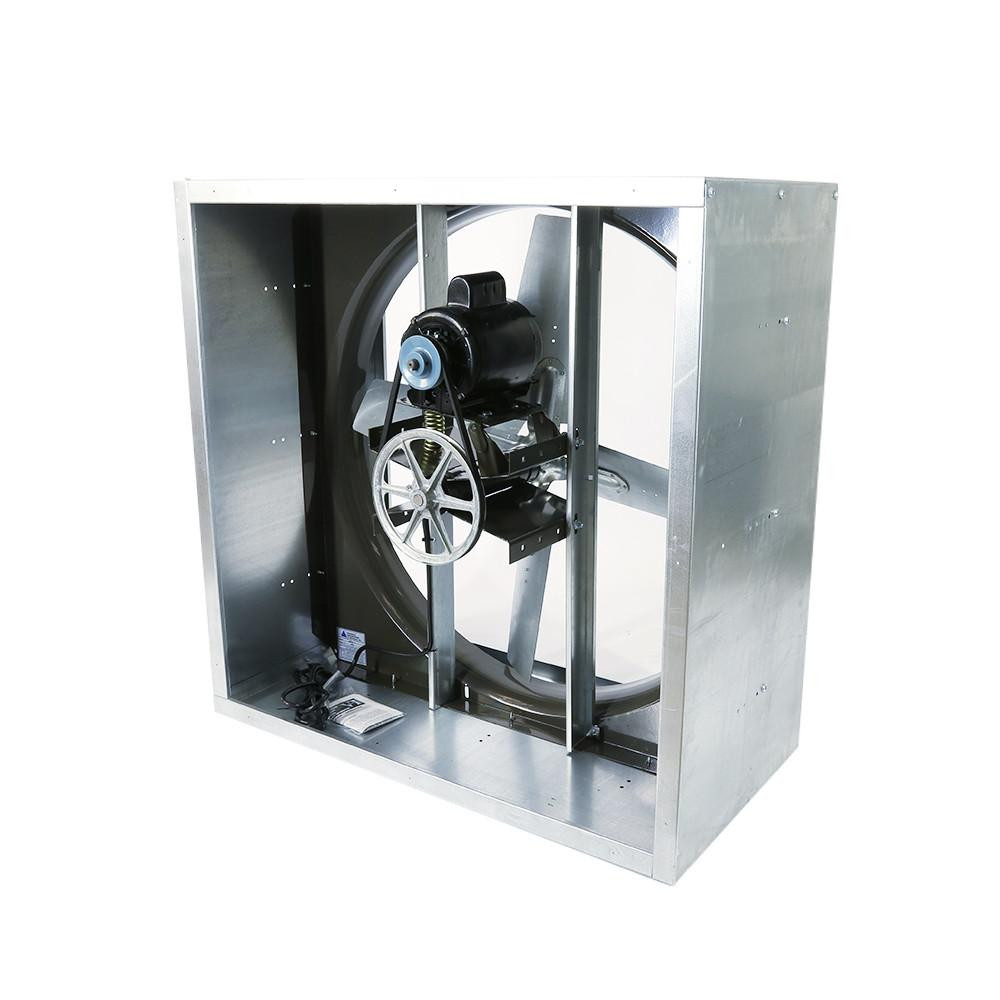

Belt drive
