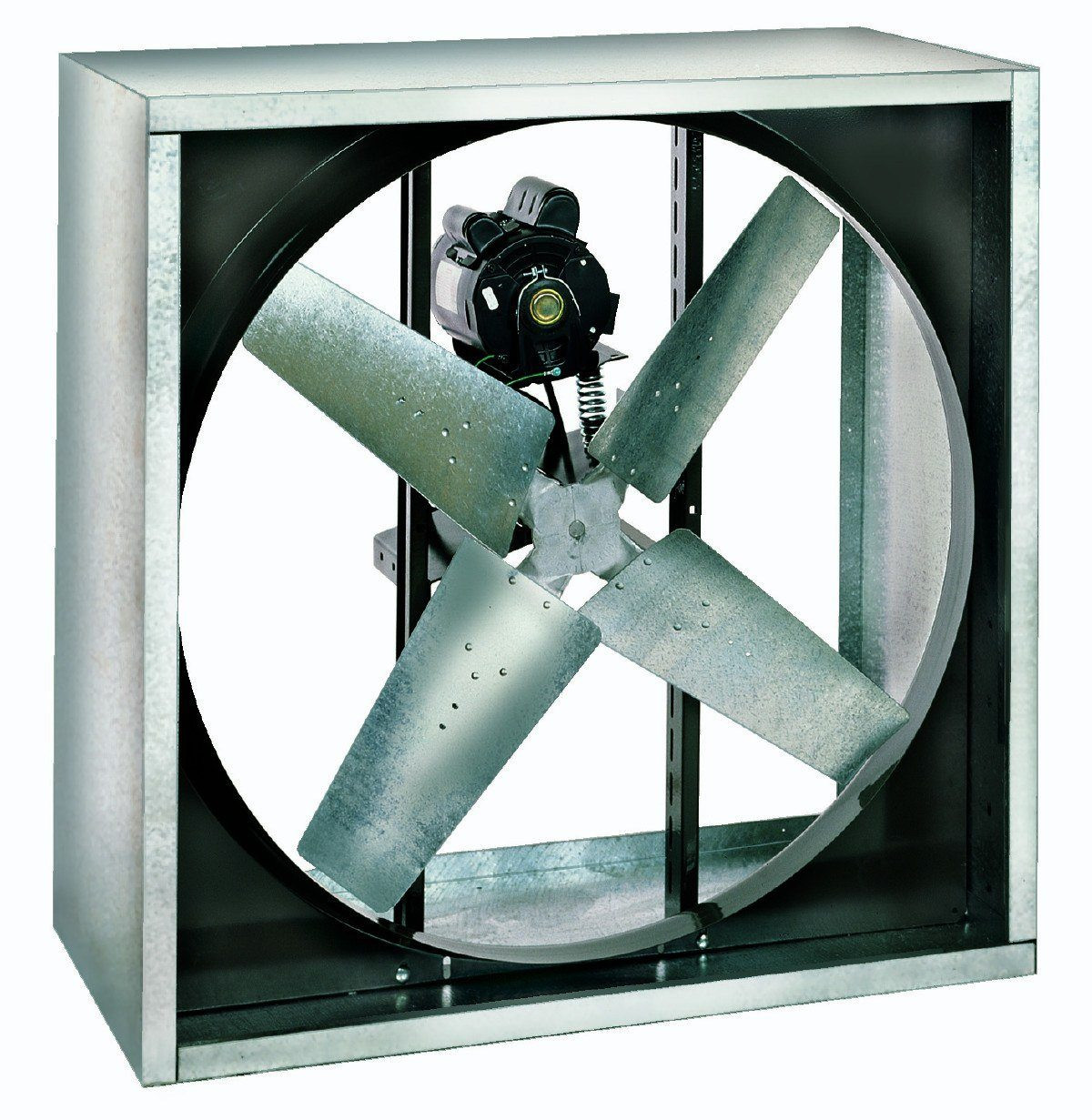

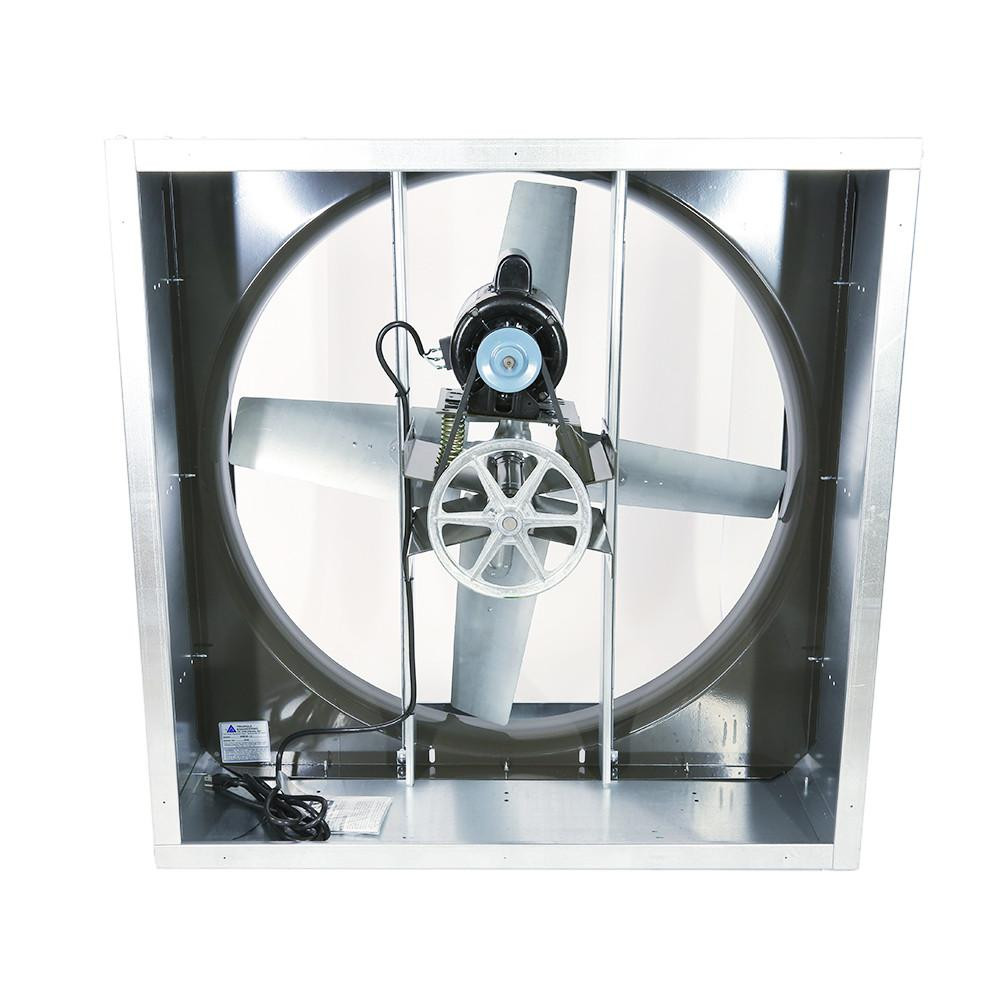

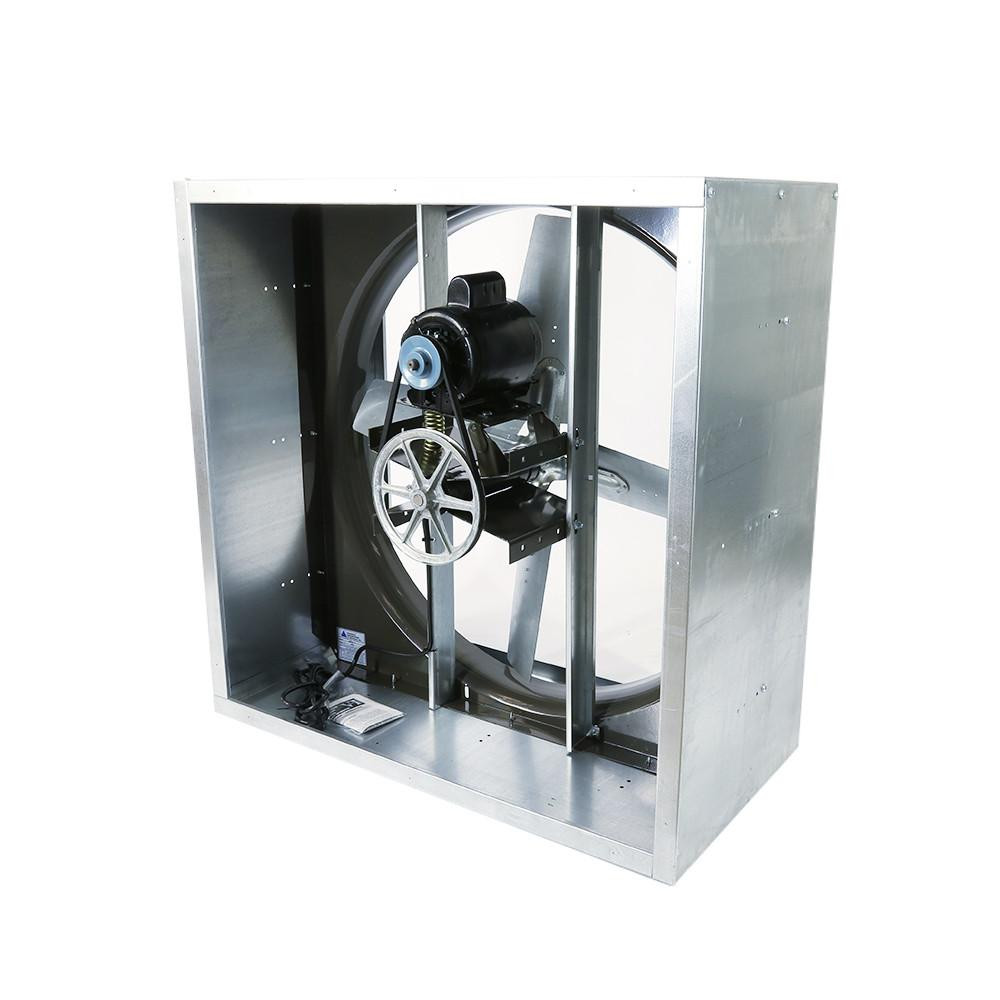

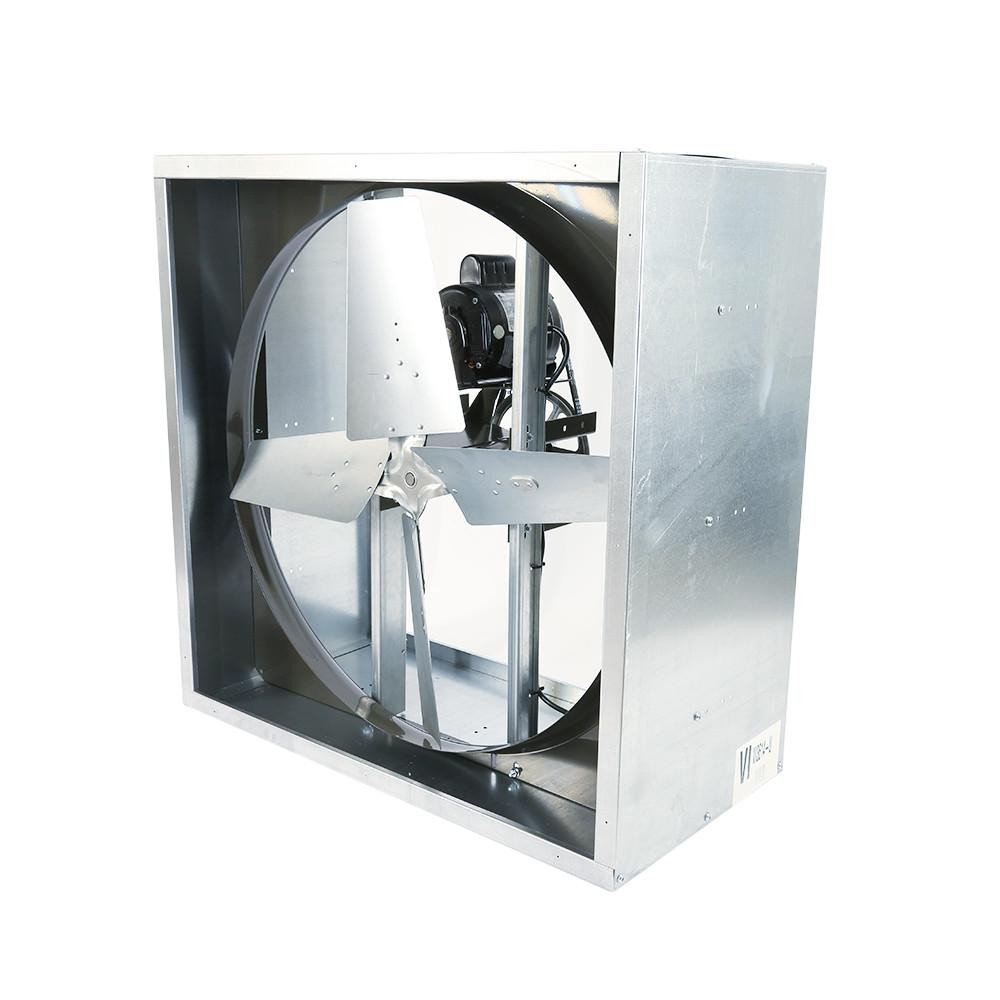

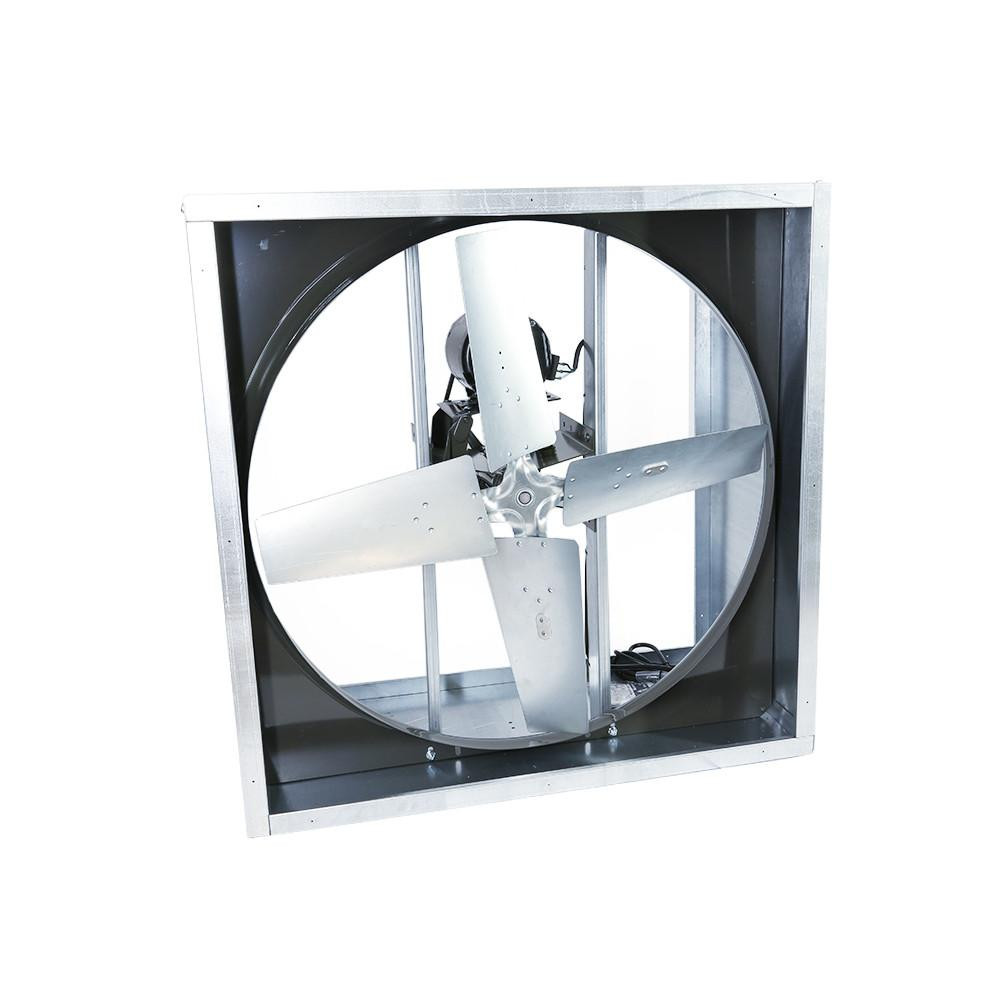

VI Cabinet Exhaust Fan 24 inch 4100 CFM 115 Volt Belt Drive 2 Speed VI2422-V
Triangle Engineering
Item #: VI2422-V
Blade Diameter
24.0"
CFM
4100
Phase
1 Phase
Voltage
115 AC
Specs for VI Cabinet Exhaust Fan 24 inch 4100 CFM 115 Volt Belt Drive 2 Speed VI2422-V
Amp: 6.5
Blade Diameter: 24.0"
Blade Material: Steel
CFM: 4100
Drive Type: Belt
Hertz: 60
Horsepower: 1/3
Made in the USA: Yes
Motor Type: ODP
Phase: 1 Phase
RPM: 705
Speed(s): 2 Speed
Voltage: 115 AC
Warehouse: Arkansas
Warranty: 3 Year
VI Series Industrial fans are designed for use in factories, steel mills, machine shops or anywhere large volumes of warm or stagnant air must be removed. Standard units are available from 1/3 HP to 5 HP (4,100 CFM to 43,100 CFM). VI fans feature extra-heavy-duty steel components & frame with a unique fastening system for easy field adjustment. The painted surfaces have a durable powder-coat finish.
FEATURES
Bronze powder coated rolled inlet venturi for efficient airflow
Rugged heavy gauge galvanized housing
Available in sizes from 24" to 60" blade diameter
Available with ODP, TE and HL motors

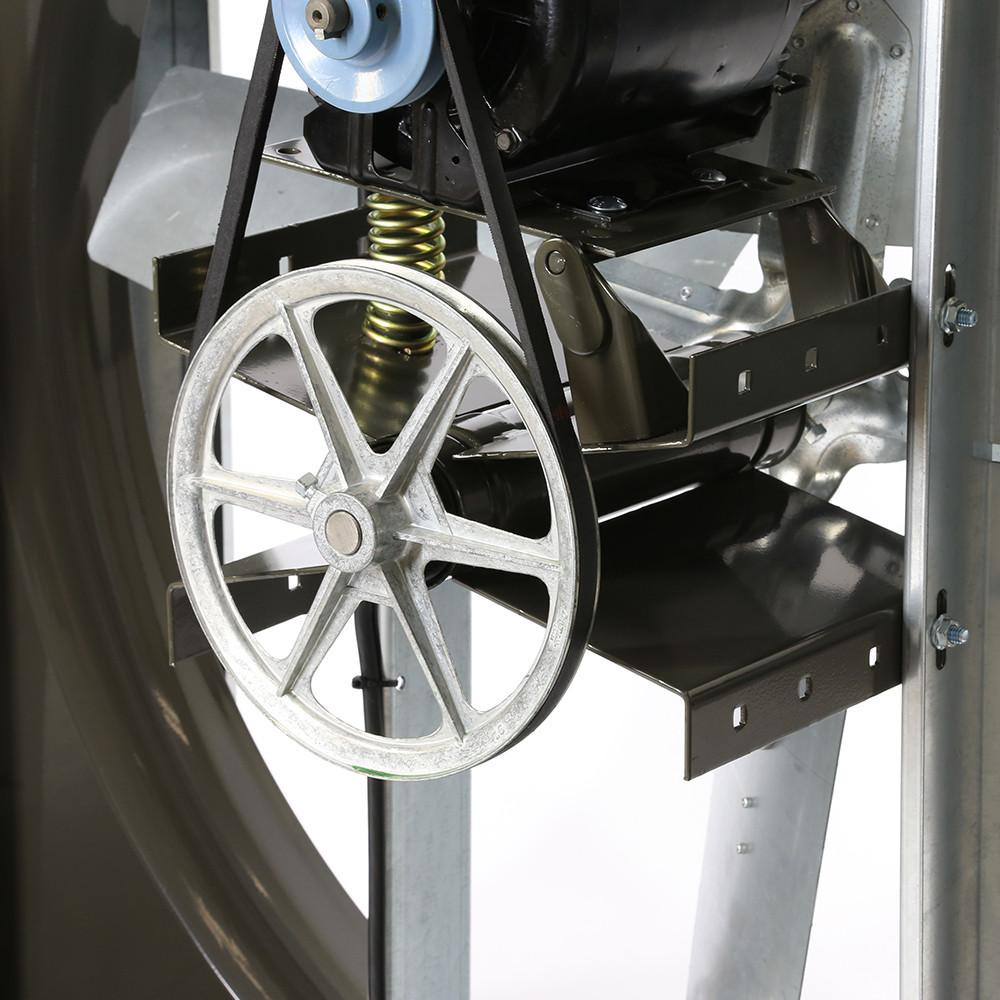

Belt drive
