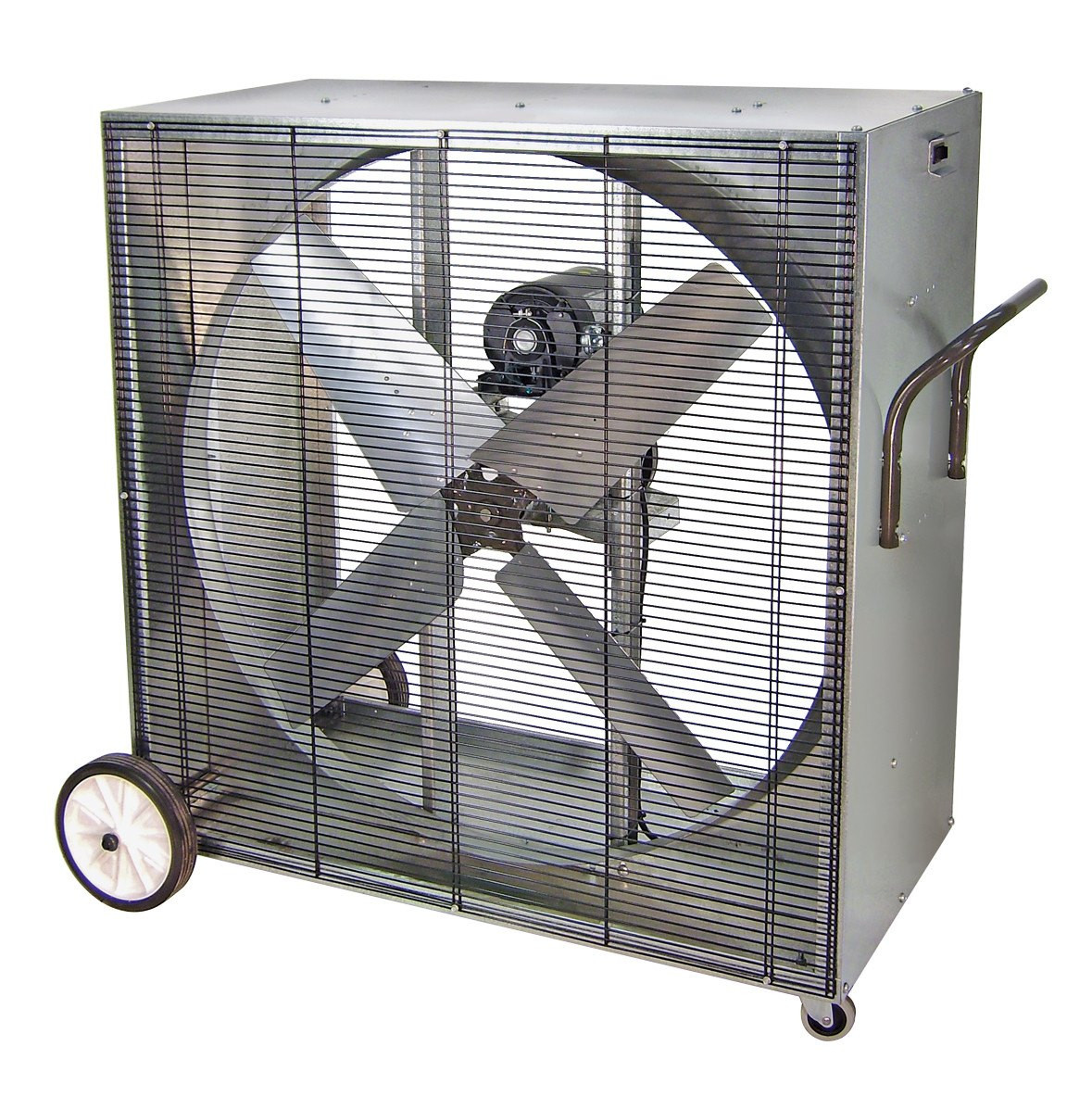

PVI Heat Buster Portable Boxed Blower Fan 36 inch 10800 CFM Belt Drive PVI3613
Triangle Engineering
Item #: PVI3613-V-PARENT
Blade Diameter
36.0"
CFM
10800
Phase
1 Phase
Voltage
115 / 230 AC
Specs for PVI Heat Buster Portable Boxed Blower Fan 36 inch 10800 CFM Belt Drive PVI3613
Amp: 11 / 5.5
Blade Diameter: 36.0"
CFM: 10800
Drive Type: Belt
Hertz: 60
Horsepower: 1/2
Made in the USA: Yes
Motor Type: ODP
Phase: 1 Phase
Speed(s): 1 Speed
Voltage: 115 / 230 AC
Warehouse: Arkansas
Warranty: 1 Year
The PVI Series is a portable box fan with heavy duty intake and exhaust guards. It employs a rolled inlet powder coated venturi to improve airflow and come with a rugged heavy gauge galvanized housing. It is excellent for mechanic shops, gymnasiums, factories, or any other location where portable air movement is desired.
FEATURESAvailable in 36” to 60” blade diameters
Wide ergonomic handles
Two fixed and two swivel casters
10’ grounded three conductor cord with molded plug
Triangle’s automatic belt tensioner
Guards: OSHA Compliant
