PVI Heat Buster Portable Boxed Blower Fan 36 inch 230/460 Volt 11100 CFM 3Ph Belt Drive PVI3614-X
Triangle Engineering
Item #: PVI3614-X
Blade Diameter
36.0"
CFM
11100
Phase
3 Phase
Voltage
230 / 460 AC
Specs for PVI Heat Buster Portable Boxed Blower Fan 36 inch 230/460 Volt 11100 CFM 3Ph Belt Drive PVI3614-X
Blade Diameter: 36.0"
CFM: 11100
Drive Type: Belt
Hertz: 60
Horsepower: 3/4
Made in the USA: Yes
Motor Type: ODP
Phase: 3 Phase
Speed(s): 1 Speed
Voltage: 230 / 460 AC
Warehouse: Arkansas
Warranty: 1 Year
The PVI Series is a portable box fan with heavy duty intake and exhaust guards. It employs a rolled inlet powder coated venturi to improve airflow and come with a rugged heavy gauge galvanized housing. It is excellent for mechanic shops, gymnasiums, factories, or any other location where portable air movement is desired.
FEATURES
Available in 36” to 60” blade diameters
Wide ergonomic handles
Two fixed and two swivel casters
Power Cord for model PVI3613-X: 1' pigtail w/o plug

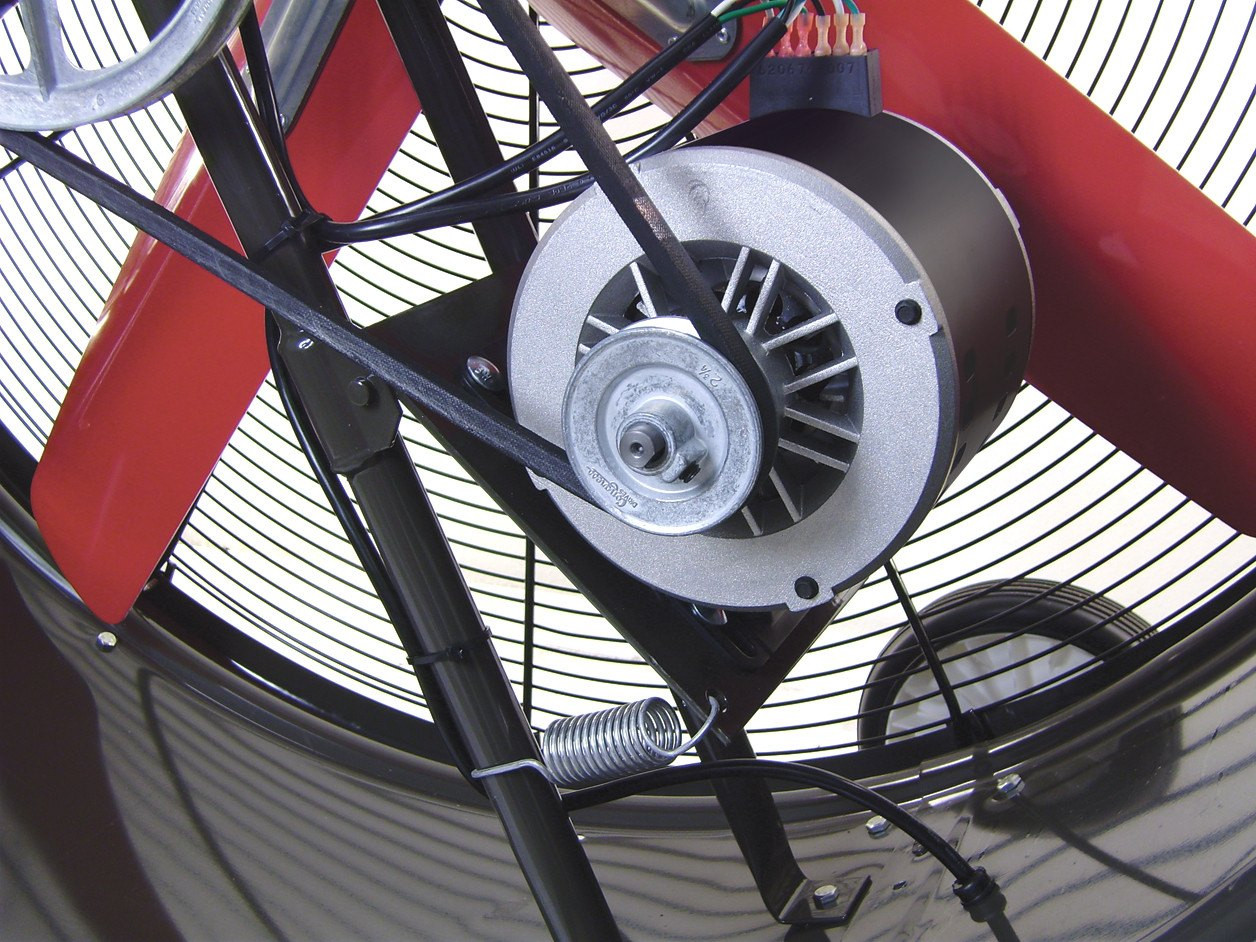

Triangle’s automatic belt tensioner
Guards: OSHA Compliant
