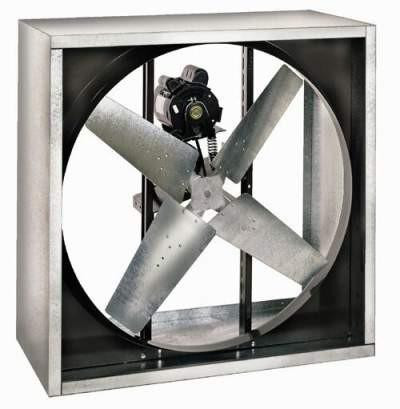

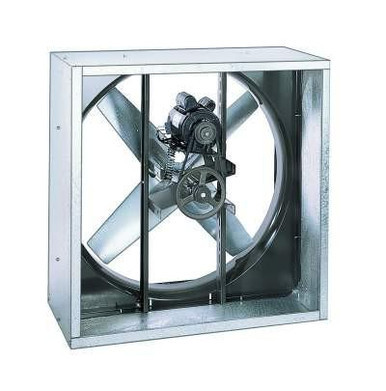

VI Explosion Proof Exhaust Fan 36 inch 12100 CFM Belt Drive VI3615HL-U
Triangle Engineering
Item #: VI3615HL-U
Blade Diameter
36.0"
CFM
12100
Phase
1 Phase
Voltage
115 / 230 AC
Specs for VI Explosion Proof Exhaust Fan 36 inch 12100 CFM Belt Drive VI3615HL-U
Amp: 11
Blade Diameter: 36.0"
Blade Material: Aluminum
CFM: 12100
Drive Type: Belt
Hertz: 60
Horsepower: 1
Made in the USA: Yes
Motor Type: Explosion Proof
Phase: 1 Phase
RPM: 555
Speed(s): 1 Speed
Voltage: 115 / 230 AC
Warehouse: Arkansas
Warranty: 1 Year
NOTE: HAZARDOUS LOCATION MODELS ARE MADE TO ORDER AND ARE NON-RETURNABLE.
VI Series Industrial fans are designed for use in factories, steel mills, machine shops or anywhere large volumes of warm or stagnant air must be removed. Standard units are available from 1/3 HP to 5 HP (4,100 CFM to 43,100 CFM). VI fans feature extra-heavy-duty steel components & frame with a unique fastening system for easy field adjustment. The painted surfaces have a durable powder-coat finish.
Incorporates the motor and bearing mounts along with a super efficient Belt Tensioner to enhance the life of the motor. It is standard equipment on the VI 2412 through the VI 4816. Fans with motors larger than 11/2 HP have the standard stationary motor and bearing mounts.
MOTOR CLASSIFICATION
Class 1, Division 1, Group D
Class 2, Division 1, Groups F & G
FEATURES
Bronze powder coated rolled inlet venturi for efficient airflow
Rugged heavy gauge galvanized housing
Available in sizes from 24" to 60" blade diameter
Available with ODP, TE and HL motors
Belt drive
VI Series Industrial fans are designed for use in factories, steel mills, machine shops or anywhere large volumes of warm or stagnant air must be removed. Standard units are available from 1/3 HP to 5 HP (4,100 CFM to 43,100 CFM). VI fans feature extra-heavy-duty steel components & frame with a unique fastening system for easy field adjustment. The painted surfaces have a durable powder-coat finish.
Incorporates the motor and bearing mounts along with a super efficient Belt Tensioner to enhance the life of the motor. It is standard equipment on the VI 2412 through the VI 4816. Fans with motors larger than 11/2 HP have the standard stationary motor and bearing mounts.
MOTOR CLASSIFICATION
Class 1, Division 1, Group D
Class 2, Division 1, Groups F & G
FEATURES
Bronze powder coated rolled inlet venturi for efficient airflow
Rugged heavy gauge galvanized housing
Available in sizes from 24" to 60" blade diameter
Available with ODP, TE and HL motors
Belt drive
