VI Cabinet Exhaust Fan 36 inch 13110 CFM 115V/230 Volt Belt Drive VI3616-U
Triangle Engineering
Item #: VI3616-U
Blade Diameter
36.0"
CFM
13110
Phase
1 Phase
Voltage
115 / 230 AC
Specs for VI Cabinet Exhaust Fan 36 inch 13110 CFM 115V/230 Volt Belt Drive VI3616-U
Amp: 7.5 / 15
Blade Diameter: 36.0"
Blade Material: Steel
CFM: 13110
Drive Type: Belt
Hertz: 60
Horsepower: 1 1/2
Made in the USA: Yes
Motor Type: ODP
Phase: 1 Phase
Speed(s): 1 Speed
Voltage: 115 / 230 AC
Warehouse: Arkansas
Warranty: 1 Year
VI Series Industrial fans are designed for use in factories, steel mills, machine shops or anywhere large volumes of warm or stagnant air must be removed. Standard units are available from 1/3 HP to 5 HP (4,100 CFM to 43,100 CFM). VI fans feature extra-heavy-duty steel components & frame with a unique fastening system for easy field adjustment. The painted surfaces have a durable powder-coat finish.
FEATURES
Bronze powder coated rolled inlet venturi for efficient airflow
Rugged heavy gauge galvanized housing
Available in sizes from 24" to 60" blade diameter
Available with ODP, TE and HL motors

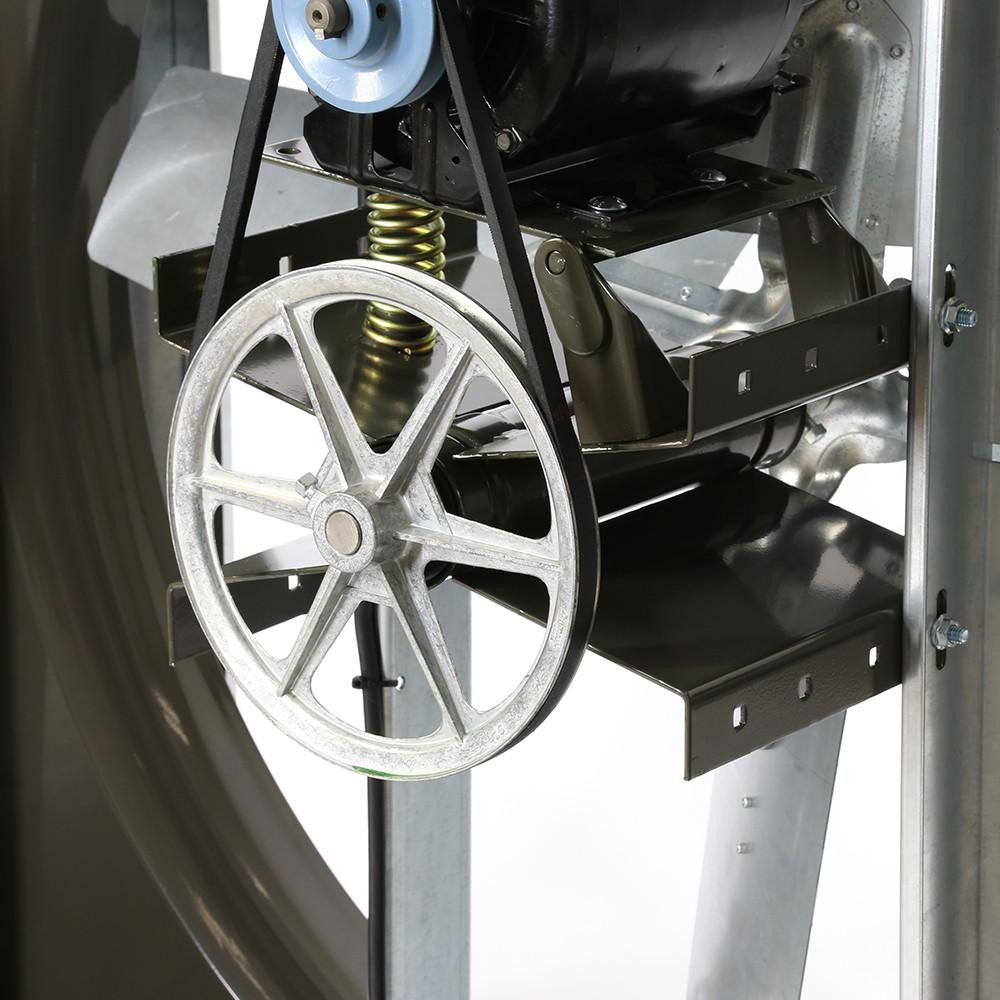

Belt drive
