PVI Heat Buster Portable Boxed Blower Fan 42 inch 230/460 Volt 16800 CFM 3Ph Belt Drive PVI4217-X
Triangle Engineering
Item #: PVI4217-X
Blade Diameter
42.0"
CFM
16800
Phase
3 Phase
Voltage
230 / 460 AC
Specs for PVI Heat Buster Portable Boxed Blower Fan 42 inch 230/460 Volt 16800 CFM 3Ph Belt Drive PVI4217-X
Blade Diameter: 42.0"
CFM: 16800
Drive Type: Belt
Hertz: 60
Horsepower: 2
Made in the USA: Yes
Motor Type: ODP
Phase: 3 Phase
Speed(s): 1 Speed
Voltage: 230 / 460 AC
Warehouse: Arkansas
Warranty: 1 Year
The PVI Series is a portable box fan with heavy duty intake and exhaust guards. It employs a rolled inlet powder coated venturi to improve airflow and come with a rugged heavy gauge galvanized housing. It is excellent for mechanic shops, gymnasiums, factories, or any other location where portable air movement is desired.
FEATURES

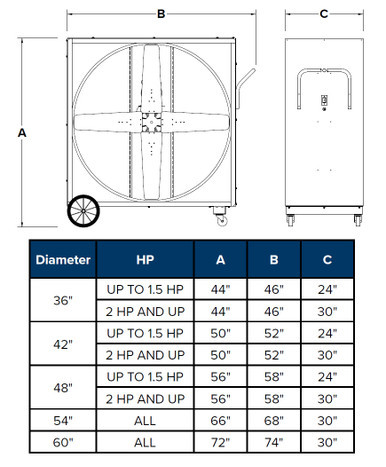

Available in 36” to 60” blade diameters
Wide ergonomic handles
Two fixed and two swivel casters
Power Cord for model PVI3613-X: 1' pigtail w/o plug
Triangle’s automatic belt tensioner
Guards: OSHA Compliant
