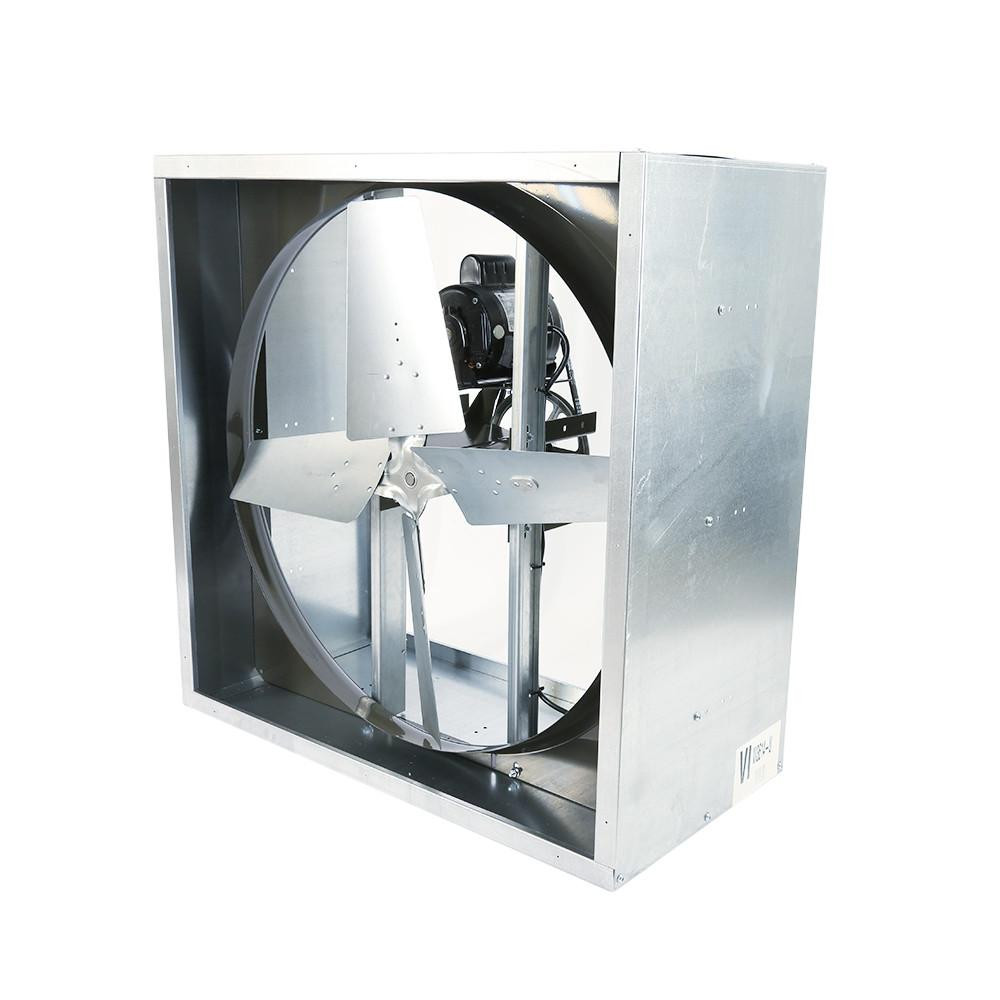

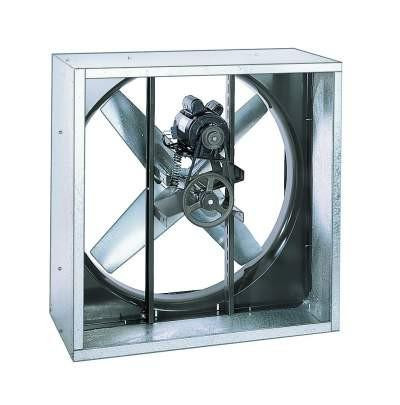

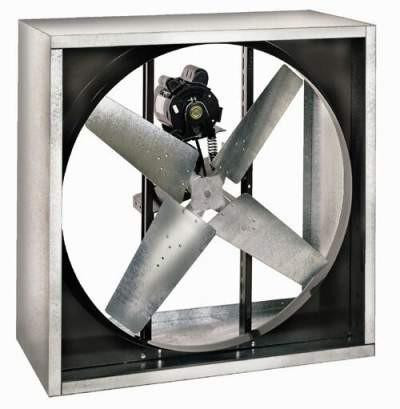

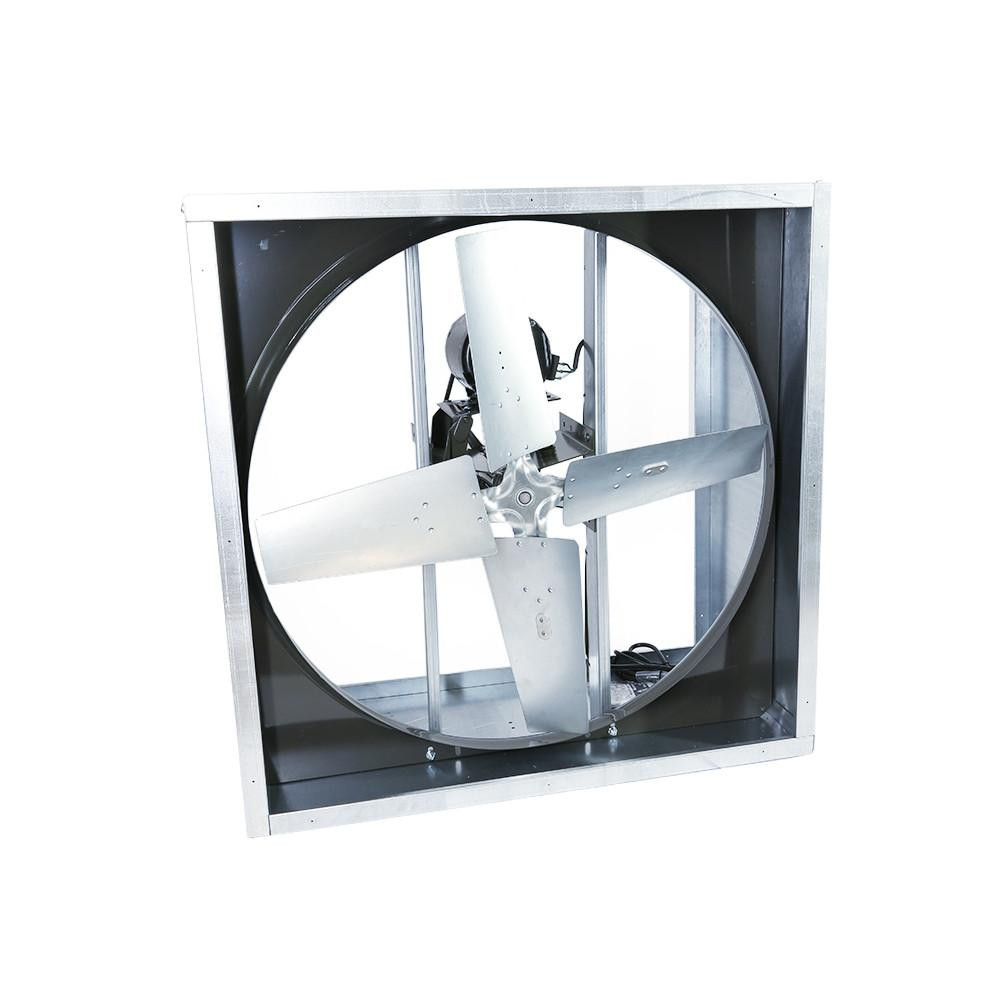

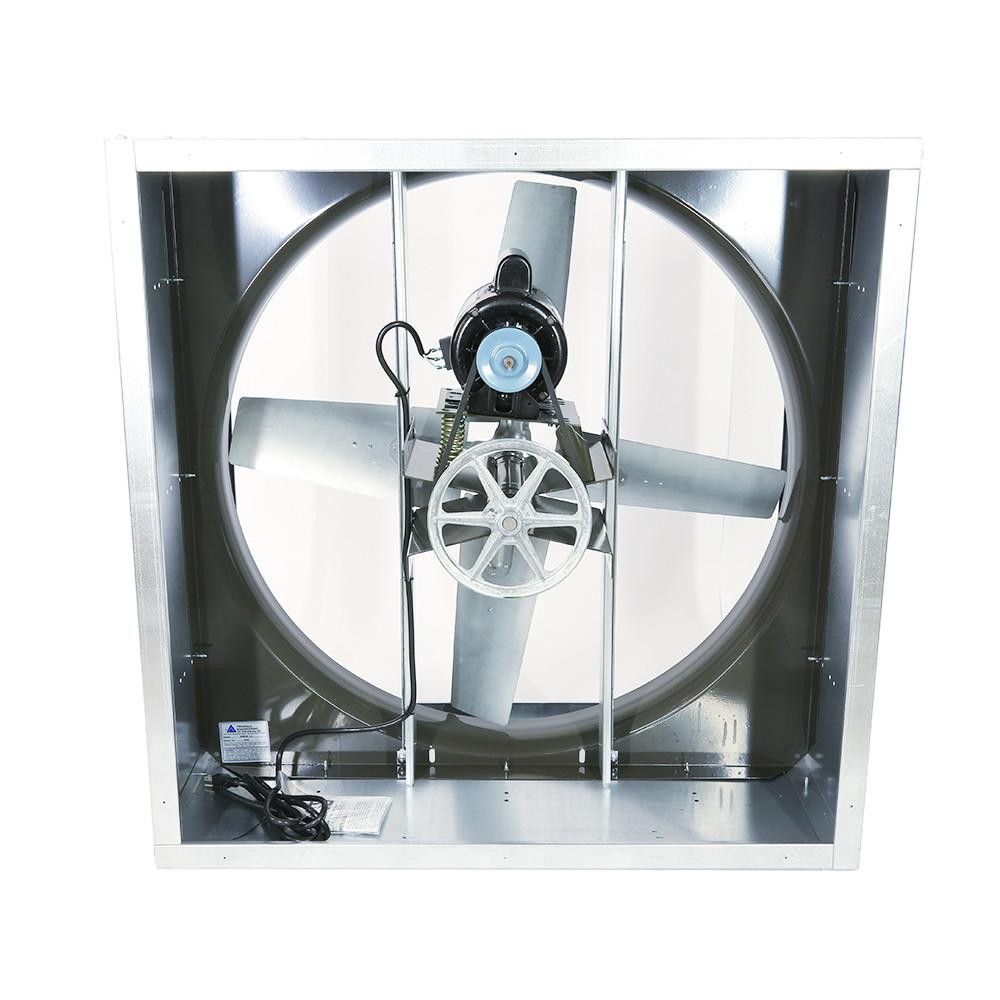

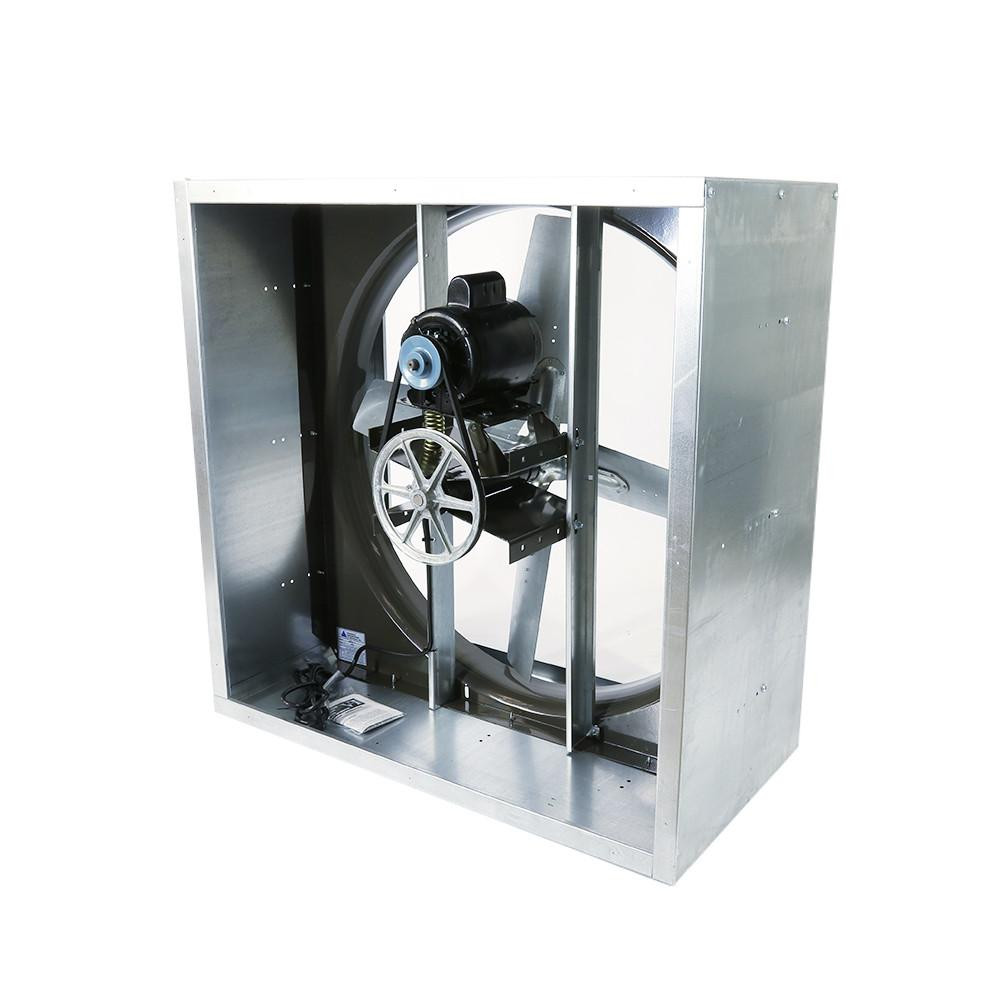

VI Cabinet Exhaust Fan 48 inch 21500 CFM 115V/230 Volt Belt Drive VI4816-U
Triangle Engineering
Item #: VI4816-U
Blade Diameter
48.0"
CFM
21500
Phase
1 Phase
Voltage
115 / 230 AC
Specs for VI Cabinet Exhaust Fan 48 inch 21500 CFM 115V/230 Volt Belt Drive VI4816-U
Amp: 7.5 / 15
Blade Diameter: 48.0"
Blade Material: Steel
CFM: 21500
Drive Type: Belt
Horsepower: 1 1/2
Made in the USA: Yes
Motor Type: ODP
Phase: 1 Phase
RPM: 480
Speed(s): 1 Speed
Voltage: 115 / 230 AC
Warehouse: Arkansas
Warranty: 1 Year
VI Series Industrial fans are designed for use in factories, steel mills, machine shops or anywhere large volumes of warm or stagnant air must be removed. Standard units are available from 1/3 HP to 5 HP (4,100 CFM to 43,100 CFM). VI fans feature extra-heavy-duty steel components & frame with a unique fastening system for easy field adjustment. The painted surfaces have a durable powder-coat finish.
FEATURES
Bronze powder coated rolled inlet venturi for efficient airflow
Rugged heavy gauge galvanized housing
Available in sizes from 24" to 60" blade diameter
Available with ODP, TE and HL motors

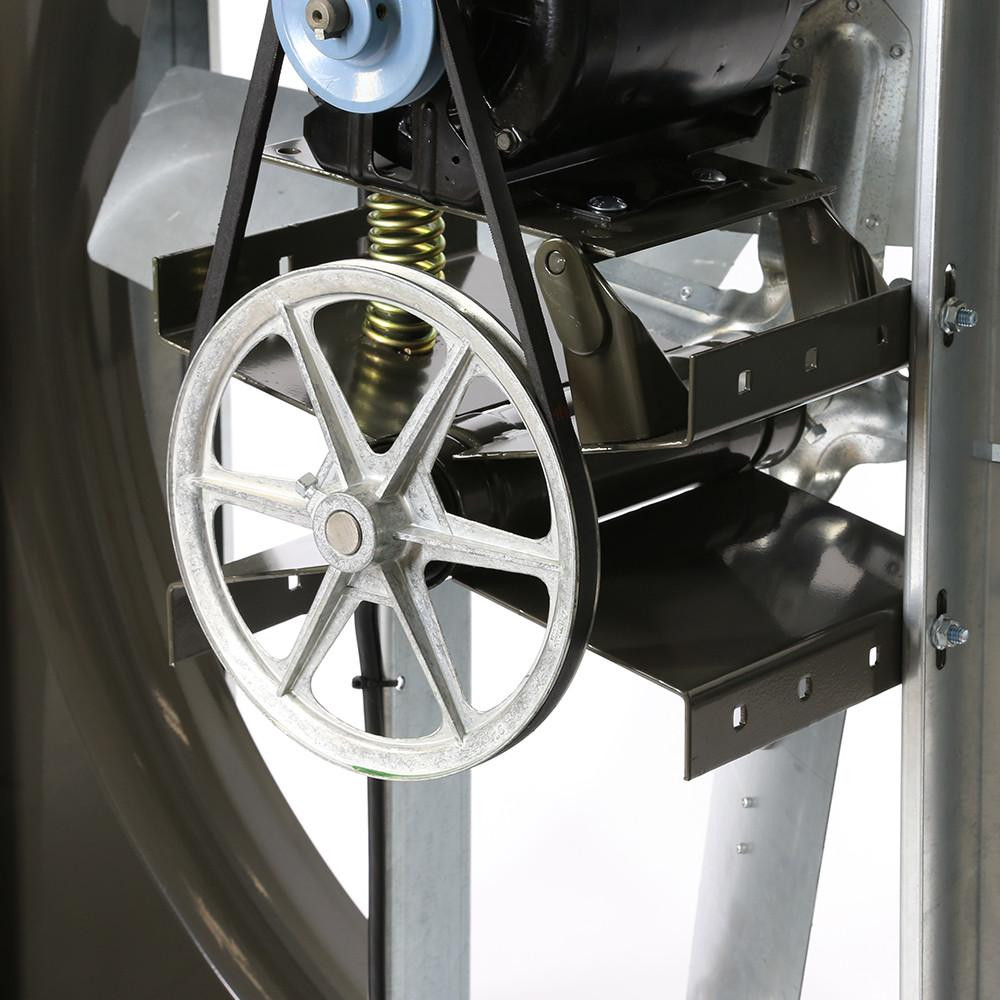

Belt drive
