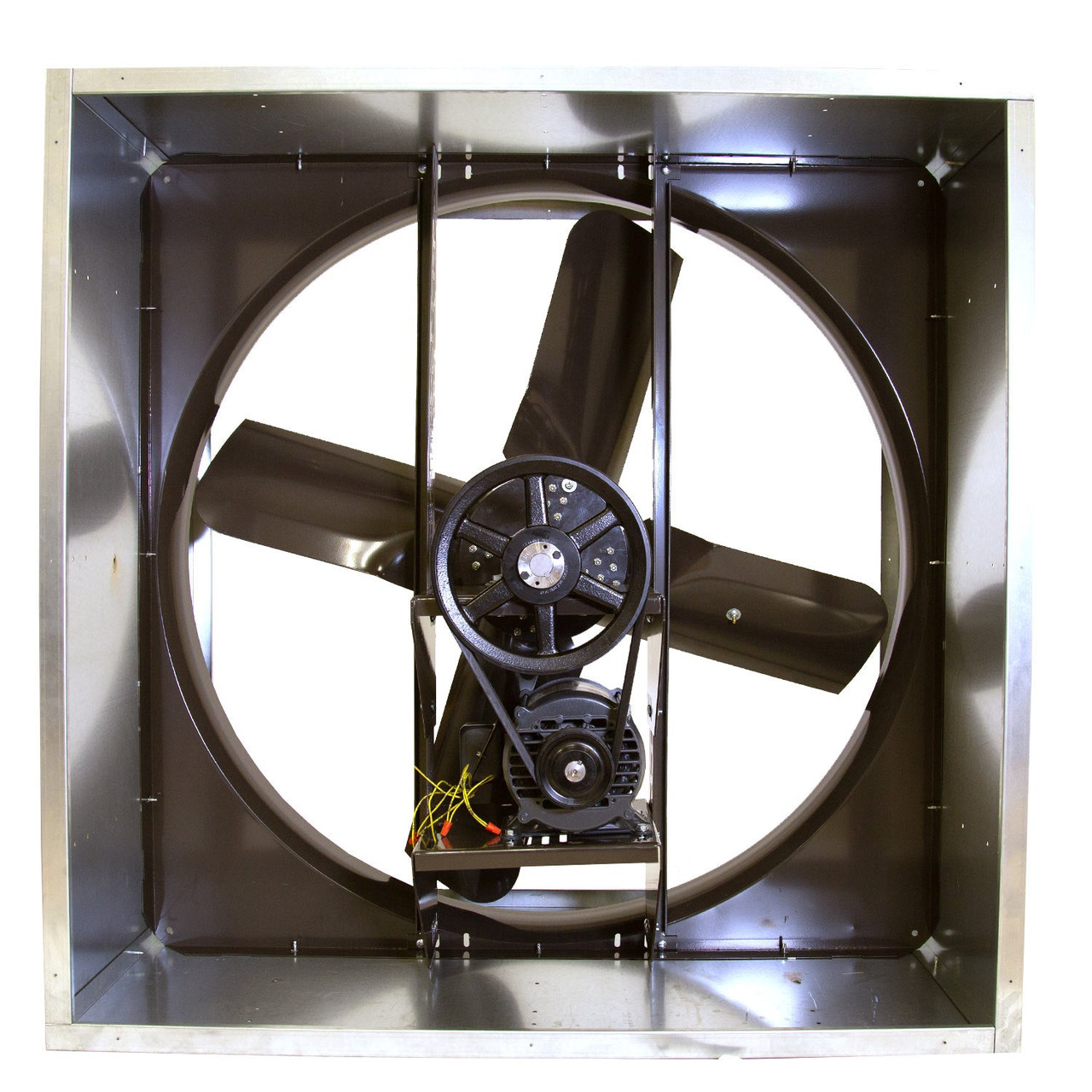

VI Explosion Proof Exhaust Fan 60 inch 30800 CFM Belt Drive VI6017HL-U

NOTE: HAZARDOUS LOCATION MODELS ARE BUILT TO ORDER AND ARE NON-RETURNABLE.

VI Series Industrial fans are designed for use in factories, steel mills, machine shops or anywhere large volumes of warm or stagnant air must be removed. Standard units are available from 1/3 HP to 5 HP (4,100 CFM to 43,100 CFM). VI fans feature extra-heavy-duty steel components & frame with a unique fastening system for easy field adjustment. The painted surfaces have a durable powder-coat finish.

MOTOR CLASSIFICATION
Class 1, Division 1, Group D
Class 2, Division 1, Groups F & G

FEATURES
Bronze powder coated rolled inlet venturi for efficient airflow
Rugged heavy gauge galvanized housing
Available in sizes from 24" to 60" blade diameter
Available with ODP, TE and HL motors
Belt drive
