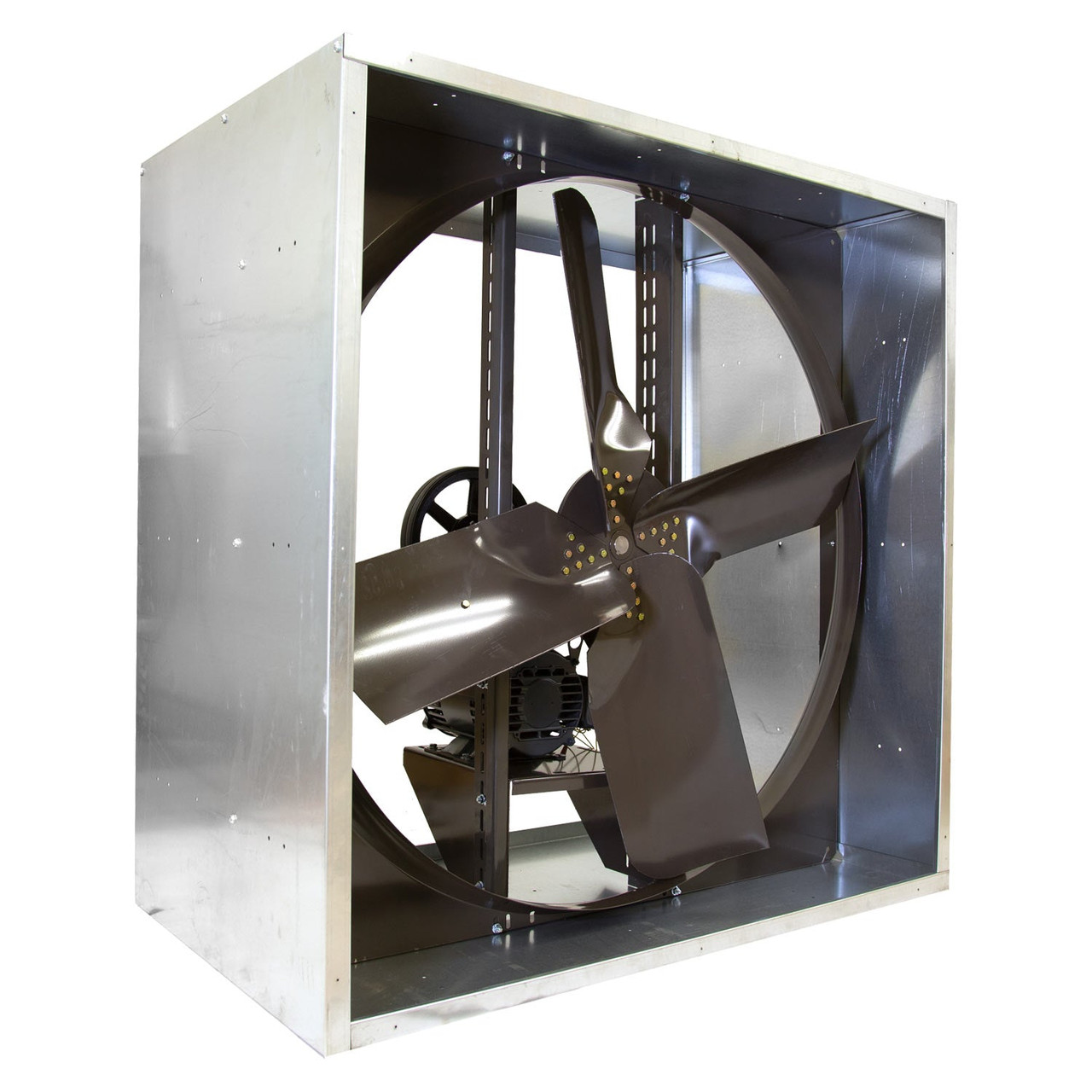

VI Cabinet Exhaust Fan Totally Enclosed 60 inch 34700 CFM 230/460 Volt Belt Drive 3 Phase VI6018T-X

Specs Details Downloads

Specs for VI Cabinet Exhaust Fan Totally Enclosed 60 inch 34700 CFM 230/460 Volt Belt Drive 3 Phase VI6018T-X

Amp: 8.4 / 4.2 Blade Diameter: 60.0" Blade Material: Steel CFM: 34700 Drive Type: Belt Horsepower: 3 Made in the USA: Yes Motor Type: ODP Phase: 3 Phase RPM: 610 Speed(s): 1 Speed Voltage: 230 / 460 AC Warehouse: Arkansas Warranty: 1 Year

VI Series Industrial fans are designed for use in factories, steel mills, machine shops or anywhere large volumes of warm or stagnant air must be removed. Standard units are available from 1/3 HP to 5 HP (4,100 CFM to 43,100 CFM). VI fans feature extra-heavy-duty steel components & frame with a unique fastening system for easy field adjustment. The painted surfaces have a durable powder-coat finish.

FEATURES
Bronze powder coated rolled inlet venturi for efficient airflow
Rugged heavy gauge galvanized housing
Available in sizes from 24" to 60" blade diameter
Available with ODP, TE and HL motors
Belt drive
