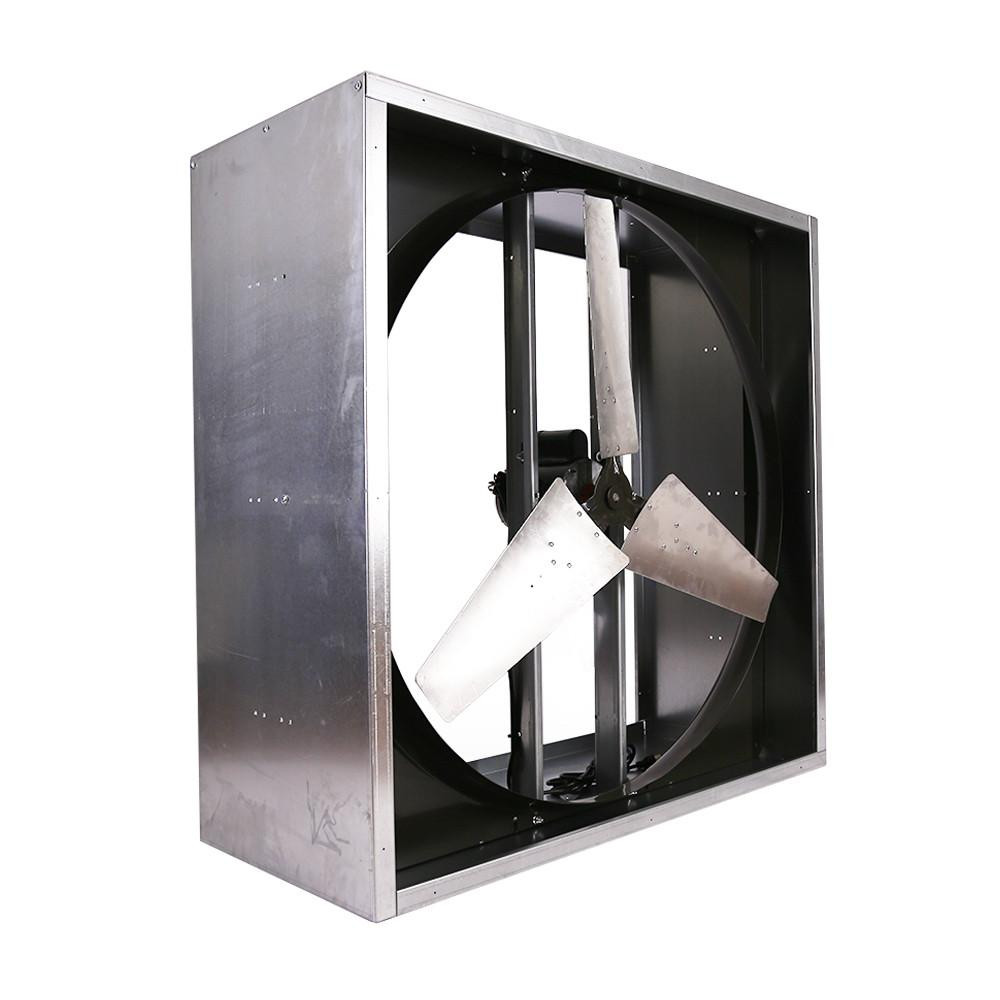

VID Cabinet Exhaust Fan 48 inch 230/460 Volt 19900 CFM 3 Phase Direct Drive VID4815T-X

Specs Details Downloads

Specs for VID Cabinet Exhaust Fan 48 inch 230/460 Volt 19900 CFM 3 Phase Direct Drive VID4815T-X

Amp: 2.6 Blade Diameter: 48.0" CFM: 19900 Drive Type: Direct Horsepower: 1 Made in the USA: Yes Motor Type: TEFC Phase: 3 Phase RPM: 830 Speed(s): 1 Speed Voltage: 230 / 460 AC Warehouse: Arkansas Warranty: 1 Year

NOTE: THIS FAN IS BUILT TO ORDER AND IS NON-RETURNABLE.

Triangle‚Äôs VID Series Direct Drive Industrial Exhaust Fans are designed with maximum airflow in mind. Each of the VID Series Direct Drive Industrial Exhaust Fans come standard with a polyester powder coated venturi as well as heavy gauge galvanized Housing for corrosion resistance. The VID Series Direct Drive Industrial Exhaust Fans are perfect when little maintenance is ideal and they are well suited for factories, gymnasiums, and warehouses.

FEATURES
Polyester powder coated venturi
Rugged heavy galvanized gauge housing
Totally enclosed motor standard
Single-phase fans include a cord and molded plug, power cord for model
Direct drive
