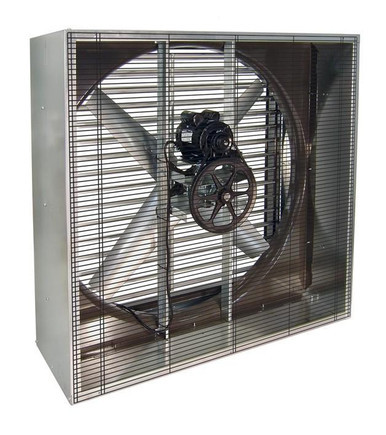

VIK Cabinet Exhaust Fan w/ Shutters Totally Enclosed 48 inch 21100 CFM Belt Drive 3 Phase VIK4817T-X

NOTE: THIS FAN IS BUILT TO ORDER AND IS NON-RETURNABLE AND CANNOT BE CANCELLED.

Triangle’s VIK Series Heavy Duty Industrial Exhaust belt drive fan packages are designed to meet the exhaust airflow needs of factories, warehouses, gymnasiums, greenhouses, and more. VIK Series exhaust fan packages come standard with installed IWS shutters and VIG guards. The VIK Series Heavy Duty Industrial Exhaust fan packages come with a polyester powder coated venturi to improve airflow and protect against corrosion and a heavy-gauge galvanized housing for corrosion resistance.

VIK models up to 1.5 HP with ODP and TEFC motors come equipped with Triangle’s exclusive X-Wing Belt Tensioner which reduces maintenance and extends belt and motor life.

FEATURES
Bronze powder coated rolled inlet venturi for efficient airflow
Rugged heavy gauge galvanized housing
Available in sizes from 24" to 60" blade diameter
Available with ODP and TE motors
Belt drive
