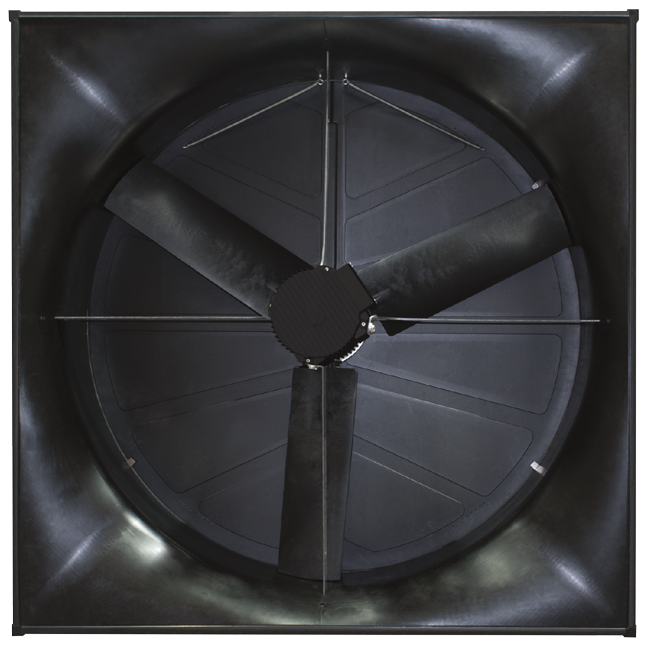

Magnum Exhaust Fan w/ Cone & Damper Door 58 inch 42238 CFM Direct Drive 3 Phase VMF58DP3C223B

NOTE: ASSEMBLY REQUIRED

The Magnum 58" Exhaust Fan uses a maintenance free direct drive permanent magnet motor. It eliminates the need for greasing bearings and changing belts. The housing is made of strong poly while the frame is all stainless-steel preventing rust and corrosion in any environment. The complete fan includes durable poly damper doors that seal out air and light when closed.

The Magnum 58" Fan is designed to operate in the full range from minimum ventilation to maximum power using basic 0-10 volt control signal which eliminates the need for smaller fans. Because of the high performance of the Magnum 58", you'll use 25% fewer fans on your next project making it your most economical choice.

FEATURES
Internal Motor Drive, no VFD needed. Provides soft starts, enables variable speed and allows for precise and uniform speed control
Surge protection
Locked rotor protection
Overload protection
Thermal foldback protection
IP65 rated
Industrial cast-aluminum housing
Will not interfere with RFID
Rugged, corrosion resistant poly with UV inhibitor

ROUGH OPENING
65.25" W x 65.25" H
