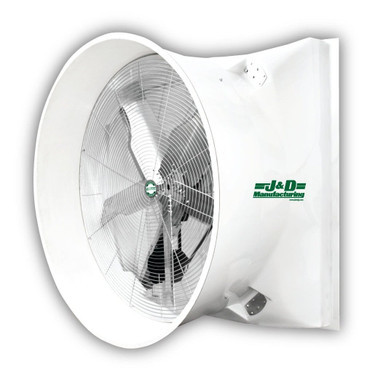

Mega Storm Fiberglass Exhaust Fan & Cone w/ Poly Shutters 72 inch 46448 CFM Belt Drive VMSP72A5C31

Specs Details Downloads

Specs for Mega Storm Fiberglass Exhaust Fan & Cone w/ Poly Shutters 72 inch 46448 CFM Belt Drive VMSP72A5C31

Amp: 28 / 14 Blade Diameter: 72.0" Blade Material: Aluminum CFM: 46448 Drive Type: Belt Hertz: 60 Horsepower: 3 Made in the USA: Yes Phase: 1 Phase RPM: 335 Speed(s): 1 Speed Voltage: 115 / 230 AC Warehouse: Wisconsin

The 72" Mega Storm fiberglass exhaust fan is made right here in Wisconsin and uses an American made motor and twin Gates¬¨√Ü size "A" belts. The heavy duty X-frame and Double A auto belt tensioner provide superior strength and durability.

FEATURES
Quiet and smooth operation
5 bladed aluminum propeller
3 HP, UL Certified, American made motor (File# E49747/E4614)
No motor adjustments needed
Twin Gates¬¨√Ü size ‚Äö√Ñ√∫A" belts
UV resistant gel coating on outside of housing
Drainage holes in housing prevent water and ice buildup
Extra heavy shutter clips
Aluminum shutters
3 YEAR WARRANTY on motor
10 YEAR WARRANTY on blade and bearings
25 YEAR WARRANTY on fiberglass housing
X-frame for strength and durability
Double A auto belt tensioner for longer life
Belts are easily accessible and require no tools or disassembly of fan for replacement in seconds
1.5" shaft and greasable pillow block bearings
Heavy duty guard is hot dip galvanized after welding

ROUGH OPENING
77" X 77"
