Storm Fiberglass Exhaust Fan w/ Poly Shutters 55 inch 22998 CFM Belt Drive Energy Efficient VSP55G3C11E

Specs Details Downloads

Specs for Storm Fiberglass Exhaust Fan w/ Poly Shutters 55 inch 22998 CFM Belt Drive Energy Efficient VSP55G3C11E

Amp: 8.6 / 4.3 Blade Diameter: 55.0" Blade Material: Galvanized Steel CFM: 22998 Drive Type: Belt Hertz: 60 Horsepower: 1 Made in the USA: Yes Motor Type: TEFC Phase: 1 Phase RPM: 472 Speed(s): 1 Speed Voltage: 115 / 230 AC Warehouse: Wisconsin Warranty: 1 Year Watts (High): 29.4

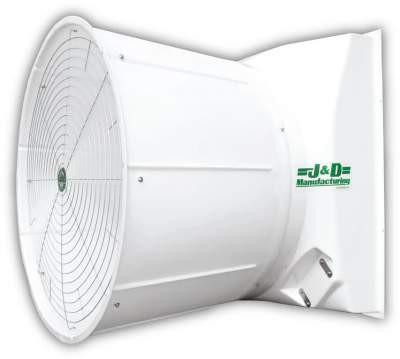

The Storm 55" fiberglass exhaust fan has a rugged aerodynamic fiberglass housing and deep poly cone for unmatched performance.

FEATURES
Rugged aerodynamic fiberglass housing with heavy duty deep poly cone for superior performance
High efficiency totally enclosed 1 HP, 1-1/2 HP and 2 HP motors
Heavy gauge slanted galvanized H-frame.
Poly¬¨‚Ä†shutters
New automotive style belt tensioner
UV resistant gel coating on outside of housing
Drainage holes in housing to prevent water and ice buildup
Heavy gauge guard is hot dip galvanized after welding
High performance galvanized propeller with 1 Year Warranty
Rugged pillow block bearings with a 7 year warranty
Special pre-lubricated shaft bearings featuring an eccentric locking collar with set screw. Bearings are permanently sealed and rubber mounted for smooth operation
Lifetime Warranty on fiberglass housing and cone
Requires 1/3 less fans compared to using 48" exhaust fans

ROUGH OPENING
59.75" X 59.75"
