AirFlo-XSA Upblast Exhauster 10.50 inch 950 CFM Variable Speed
Canarm
Item #: XSA105-UD013V
Blade Diameter
10.5"
CFM
950
Phase
1 Phase
Voltage
120 / 240 AC
Specs for AirFlo-XSA Upblast Exhauster 10.50 inch 950 CFM Variable Speed
Blade Diameter: 10.5"
Blade Material: Aluminum
CFM: 950
Dimensions: 18" x 25" x 25
Drive Type: Direct
Fan Type: Exhaust Fan
Hertz: 60
Horsepower: 1/8
Phase: 1 Phase
RPM: 1650
Speed(s): Variable Speed
Voltage: 120 / 240 AC
Warehouse: New York
Warranty: 1 Year

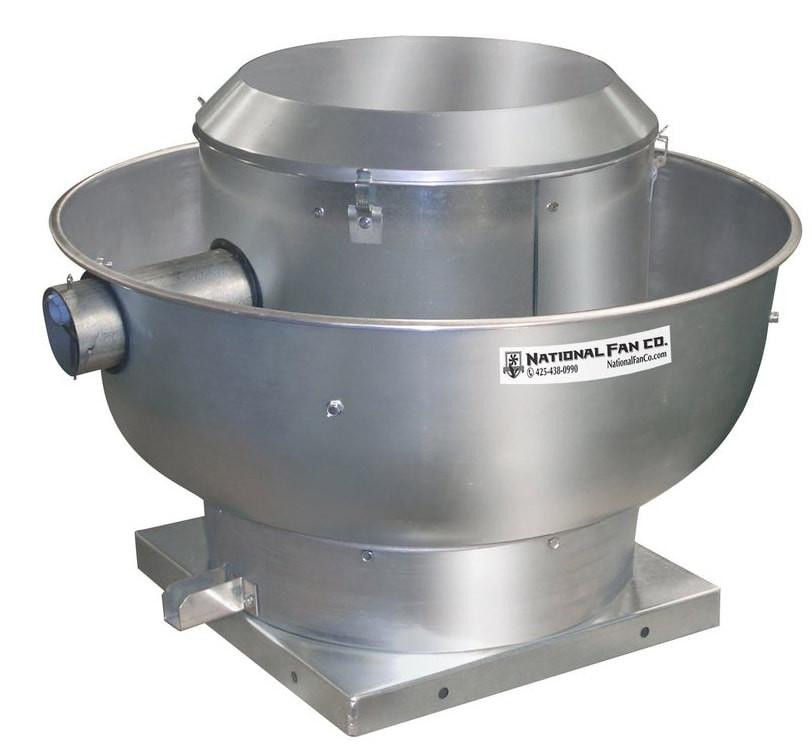

Our new spun aluminum exhausters are ideal for exhausting air from restaurants, offices, warehouses or commercial buildings. The XSA series spun aluminum exhaust fan can be used as either a roof top or a wall mount exhaust fan.
FEATURES:Spun aluminum housing will not rust, chip or peel.
Aluminum backward inclined wheel is non-overloading.
All units can be wall mounted.

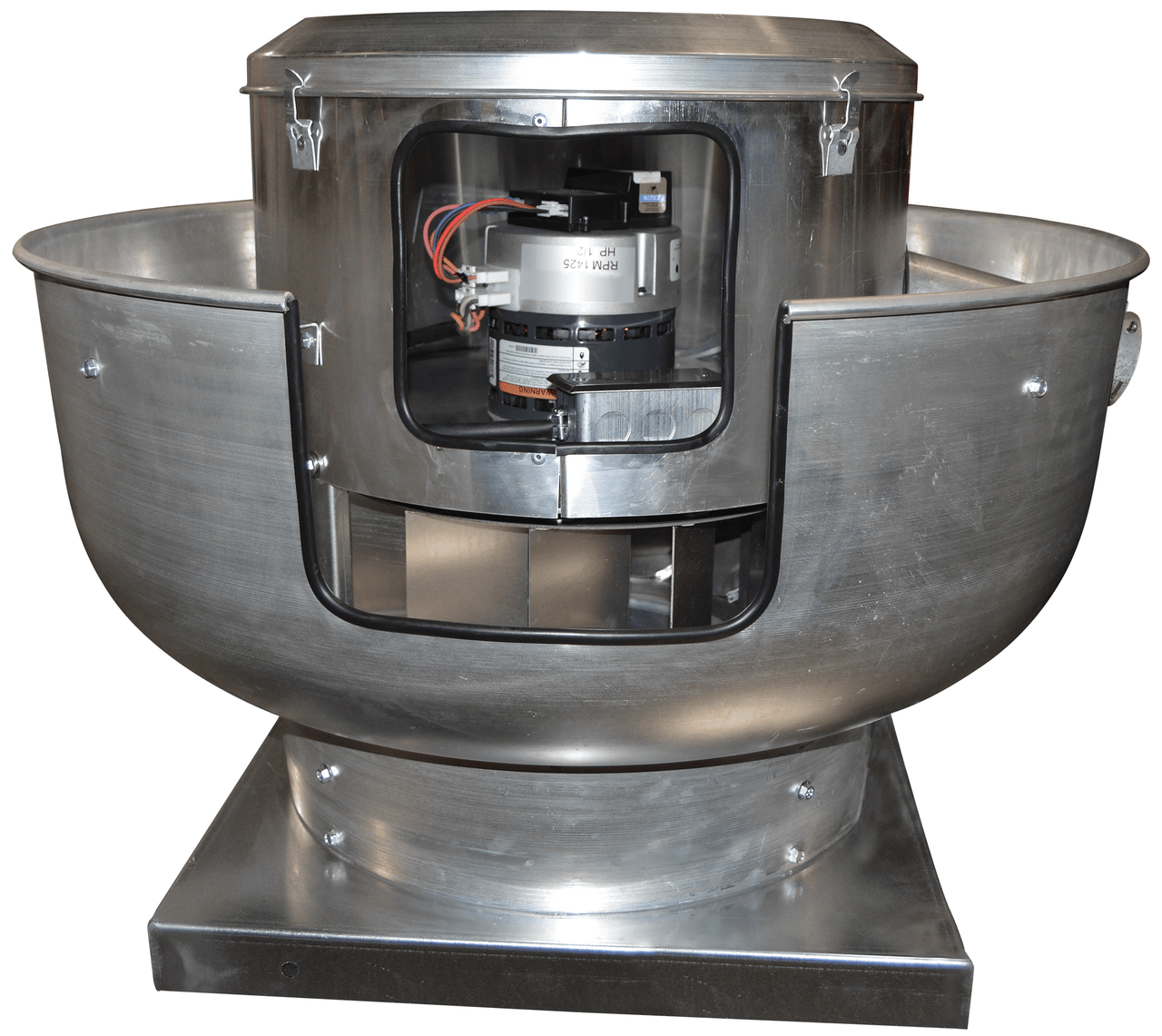

Quick release latches for easy motor access.
Direct drive, single or variable speed 120/240V motors are standard.
A = 17.63
B = 25.00
C = 19.00
D = 13.00
E = 1.50
F = 3.50
G = 0.38
Wheel Diameter: 10.50
Roof Opening: 15.00
