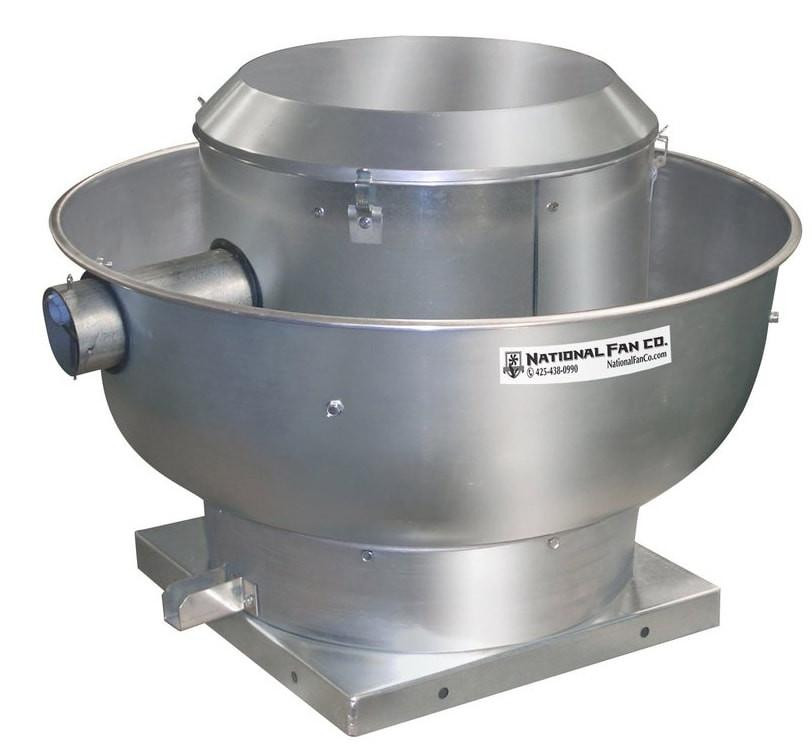

AirFlo-XSA Upblast Exhauster w/ EC Motor 10.50 inch 1051 CFM Variable Speed

Our new spun aluminum exhausters are ideal for exhausting air from restaurants, offices, warehouses or commercial buildings. The XSA series spun aluminum exhaust fan can be used as either a roof top or a wall mount exhaust fan.

FEATURES
Spun aluminum housing will not rust, chip or peel.
Aluminum backward inclined wheel is non-overloading.
All units can be wall mounted.
Quick release latches for easy motor access. .
Direct drive, single or variable speed 120/240V motors are standard

EC MOTORS ONLY
EC motors offer true variable speed operation and up to 70% energy savings over PSC motors.
On board speed adjustment allows simple setup and balancing with LED display.
Can be controlled remotely up to 50' using a remote mount potentiometer or 0-10V.

DIMENSIONS
A = 18"
B = 25"
C = 19"
D = 13"
E = 1.50"
F = 3.50"
G = 0.38"

Wheel Diameter: 10.50"
Roof Opening: 15"

Controller Manual Submittal User's Manual
