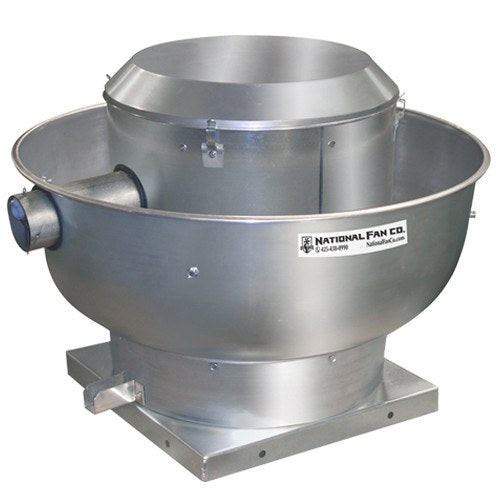

AirFlo-XSA Upblast Exhauster w/ EC Motor 16.50 inch 3179 CFM Direct Drive

Specs Details Downloads

Specs for AirFlo-XSA Upblast Exhauster w/ EC Motor 16.50 inch 3179 CFM Direct Drive

Blade Diameter: 16.5" Blade Material: Aluminum CFM: 3179 Dimensions: 27" x 37.5" x 37.5 Drive Type: Direct Fan Type: Exhaust Fan Hertz: 60 Horsepower: 1 Phase: 1 Phase RPM: 1500 Speed(s): Variable Speed Voltage: 120 / 240 AC Warehouse: New York Warranty: 1 Year

Our new spun aluminum exhausters are ideal for exhausting air from restaurants, offices, warehouses or commercial buildings. The XSA series spun aluminum exhaust fan can be used as either a roof top or a wall mount exhaust fan.

FEATURES
Spun aluminum housing will not rust, chip or peel.
Aluminum backward inclined wheel is non-overloading.
All units can be wall mounted.
Quick release latches for easy motor access. .
Direct drive, single or variable speed 120/240V motors are standard.

EC MOTORS ONLY
EC motors offer true variable speed operation and up to 70% energy savings over PSC motors.
On board speed adjustment allows simple setup and balancing with LED display.
Can be controlled remotely up to 50' using a remote mount potentiometer or 0-10V.

DIMENSIONS
A = 27.13"
B = 37.50"
C = 24.75"
D = 21.13"
E = 2"
F = 4"
G = 0.44"
Wheel Diameter: 16.50"
Roof Opening: 20.75"
