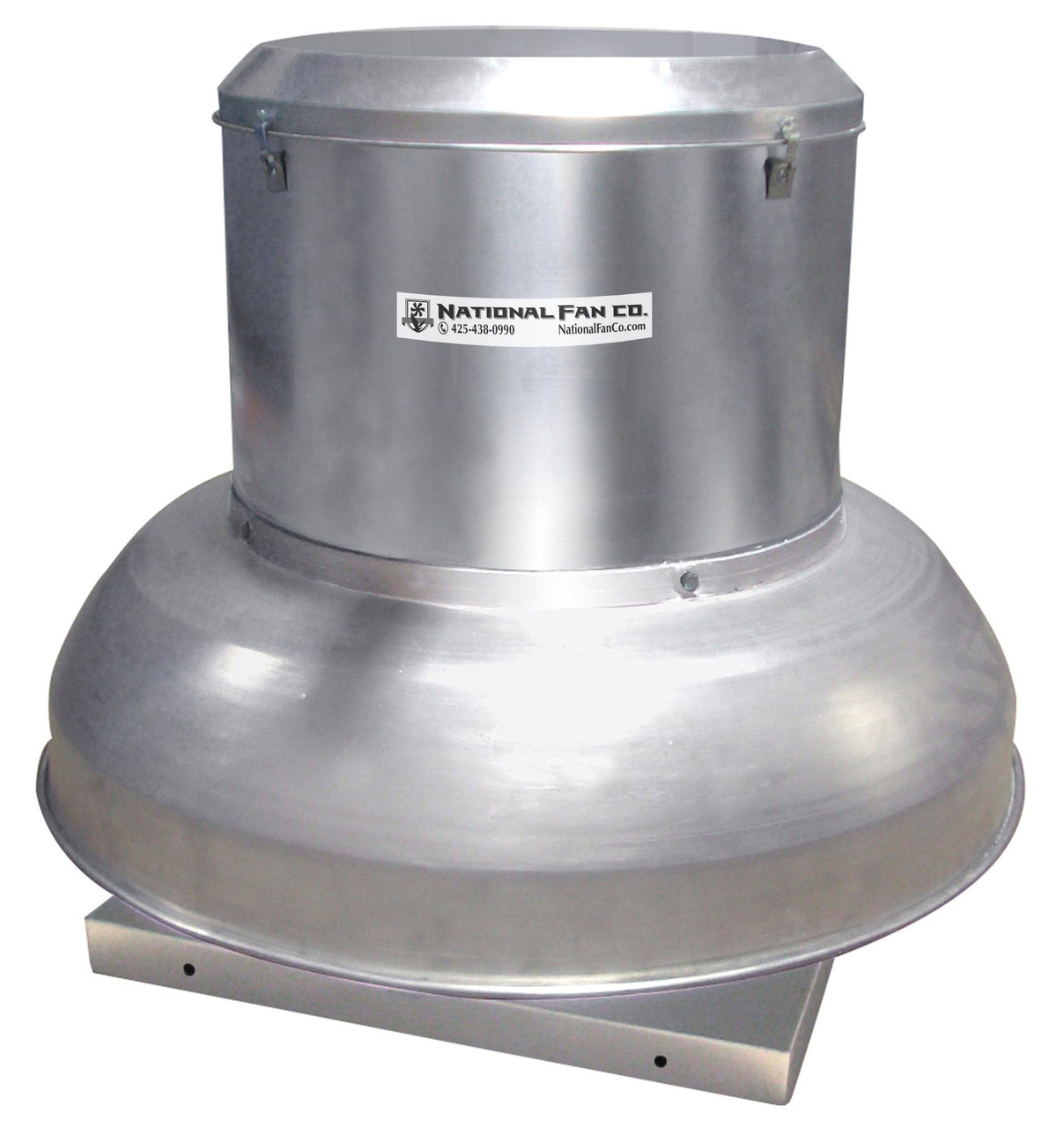

AirFlo-XSA Downblast Exhauster 18.25 inch 3970 CFM Belt Drive 3 Phase

Specs Details Downloads

Specs for AirFlo-XSA Downblast Exhauster 18.25 inch 3970 CFM Belt Drive 3 Phase

Blade Diameter: 18.25" Blade Material: Aluminum CFM: 3970 Dimensions: 37" x 43.25" x 43.75 Drive Type: Belt Fan Type: Exhaust Fan Hertz: 60 Horsepower: 2 Phase: 3 Phase RPM: 1489 Speed(s): 1 Speed Voltage: 230 / 460 AC Warehouse: New York Warranty: 1 Year

Our new spun aluminum exhausters are ideal for exhausting air from factories, offices, warehouses or commercial buildings. The XSA Series spun aluminum exhaust fan can be used as either a roof top or a wall mount exhaust fan.

FEATURES:
Spun aluminum housing will not rust, chip or peel.
Aluminum backward inclined wheel is non-overloading.
Belt Drive
Quick release latches for easy motor access.
Standard bird screen.
Units up to 24" can be wall mounted
Stocked complete with pre-set motor, disconnect, and drives using adjustable motor pulley for field adjustment.
UL 705 Listed Power Roof Ventilator label assures electrical reliability
UL 762 Listed for Restaurant Exhaust Appliance available for applications where required.

DIMENSIONS: (In Inches)

A = 31.75
B = 36.25
C = 28.00
D = 5.50
E = 2.00
F = 4.00
G = 0.44

Wheel Diameter: 18.25
Roof Opening: 20.75
