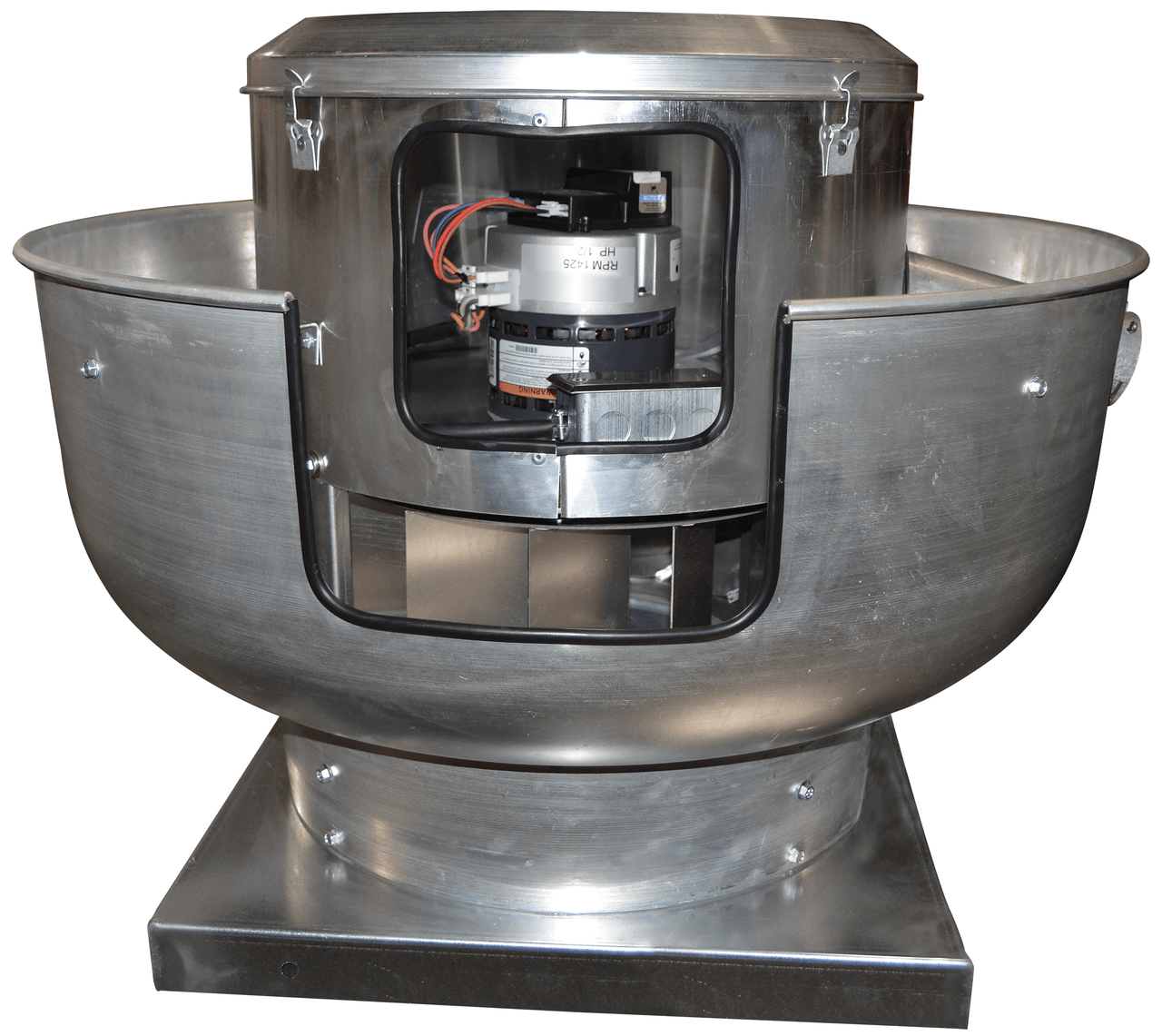

AirFlo-XSA Upblast Exhauster w/ EC Motor 21 inch 4300 CFM Direct Drive

Our new spun aluminum exhausters are ideal for exhausting air from restaurants, offices, warehouses or commercial buildings. The XSA series spun aluminum exhaust fan can be used as either a roof top or a wall mount exhaust fan.

FEATURES:

Spun aluminum housing will not rust, chip or peel
Aluminum backward inclined wheel is non-overloading
All units can be wall mounted
Quick release latches for easy motor access
Direct drive, single or variable speed 120/240V motors are standard
UL 705 Listed Power Roof Ventilator label assures electrical reliability
UL 762 Listed for Restaurant Exhaust Appliance available for applications where required.

EC MOTORS ONLY:

EC motors offer true variable speed operation and up to 70% energy savings over PSC motors.
On board speed adjustment allows simple setup and balancing with LED display.
Can be controlled remotely up to 50' using a remote mount potentiometer or 0-10V.

DIMENSIONAL DATA: (inches)

A = 36.25
B = 43.75
C = 33.13
D = 25.50
E = 2.50
F = 4.00
G = 0.44

Wheel Diameter: 21.00
Roof Opening: 29.00
