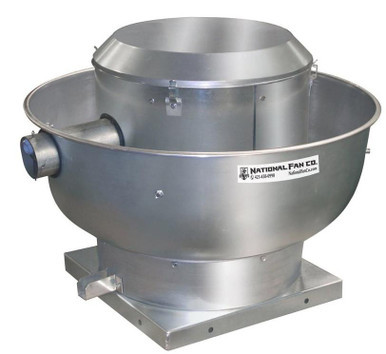

AirFlo-XSA Upblast Exhauster 24.50 inch 5146 CFM Belt Drive 3 Phase

Our new spun aluminum exhausters are ideal for exhausting air from factories, offices, warehouses or commercial buildings. The XSA Series spun aluminum exhaust fan can be used as either a roof top or a wall mount exhaust fan.

FEATURES:

Spun aluminum housing will not rust, chip or peel.
Aluminum backward inclined wheel is non-overloading.
Belt Drive
Quick release latches for easy motor access.
Units up to 24" can be wall mounted
Stocked complete with pre-set motor, disconnect, and drives using adjustable motor pulley for field adjustment.

DIMENSIONAL DATA: (inches)

A =37.00
B = 43.75
C = 33.13
D = 25.50
E = 2.50
F = 4.00
G = 0.44

Wheel Diameter: 24.50
Roof Opening: 29.00
